WST2011 - Dual P-Ch MOSFET

Winsok

WST2011 Datasheet Preview — Preview of WST2011 PDF

Datasheet Details

Part number	WST2011
Manufacturer	Winsok
File Size	1.59 MB
Description	Dual P-Ch MOSFET
Datasheet	WST2011-Winsok.pdf

WST2011 Product details

Description

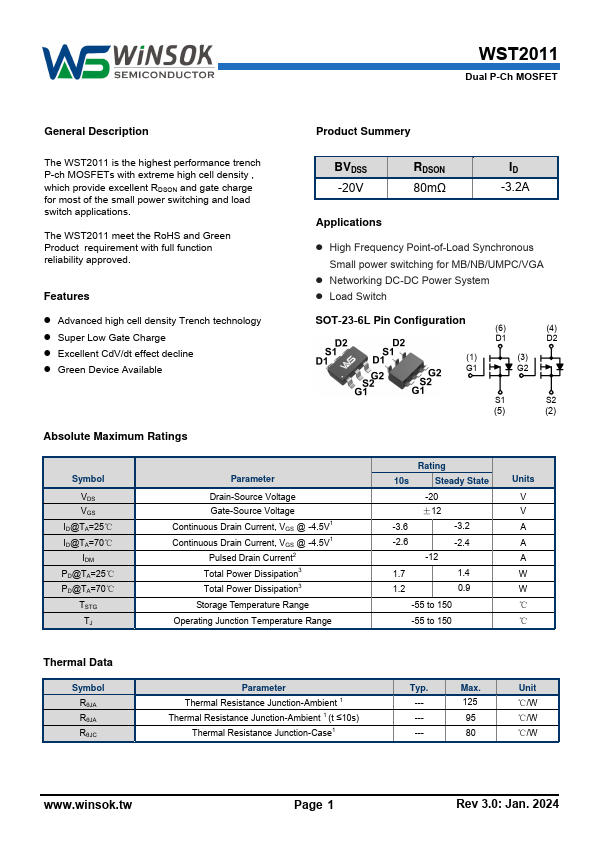

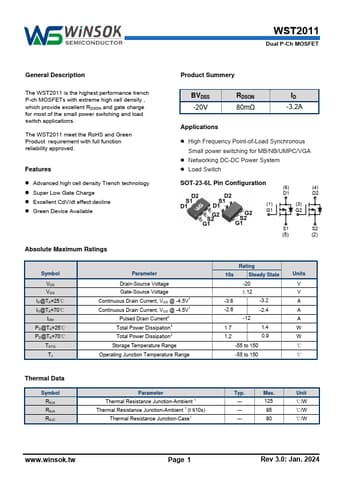

Product Summery The WST2011 is the highest performance trench P-ch MOSFETs with extreme high cell density , which provide excellent RDSON and gate charge for most of the small power switching and load switch applications.The WST2011 meet the RoHS and Green Product requirement with full function reliability approved.

Features

z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z Green Device Available BVDSS -20V RDSON 80mΩ ID -3.2A.
