WST2301 Datasheet - Winsok

WST2301 P-Ch MOSFET

The WST2301 is the highest performance trench P-ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the small power switching and load switch applications. The WST2301 meet the RoHS and Green Product requirement with full function reliability approved.

WST2301 Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent Cdv/dt effect decline z Green Device Available Product Summery BVDSS -20V RDSON 90mΩ ID -2.9A Applications z High Frequency Point-of-Load Synchronous s Small power switching for MB/NB/UMPC/VGA z Networking DC-DC

WST2301-Winsok.pdf

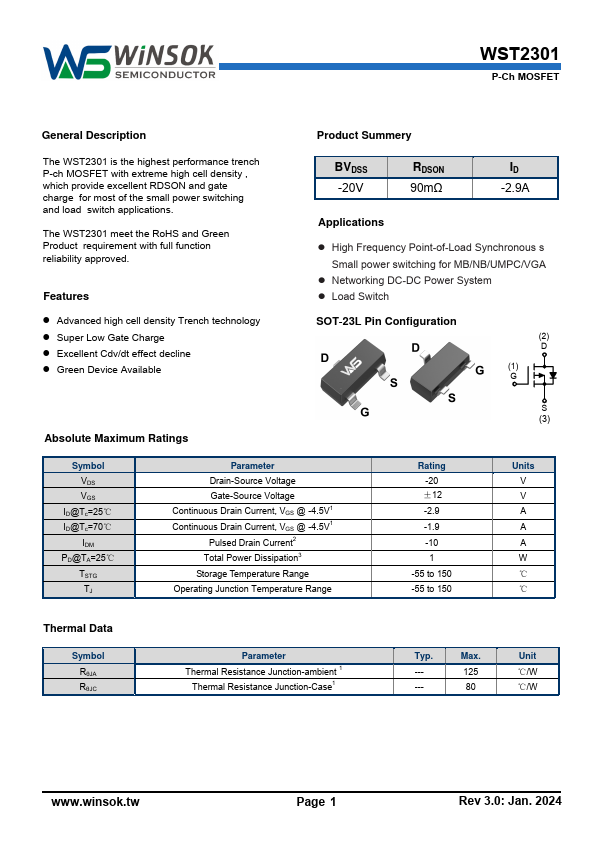

Preview of WST2301 PDF

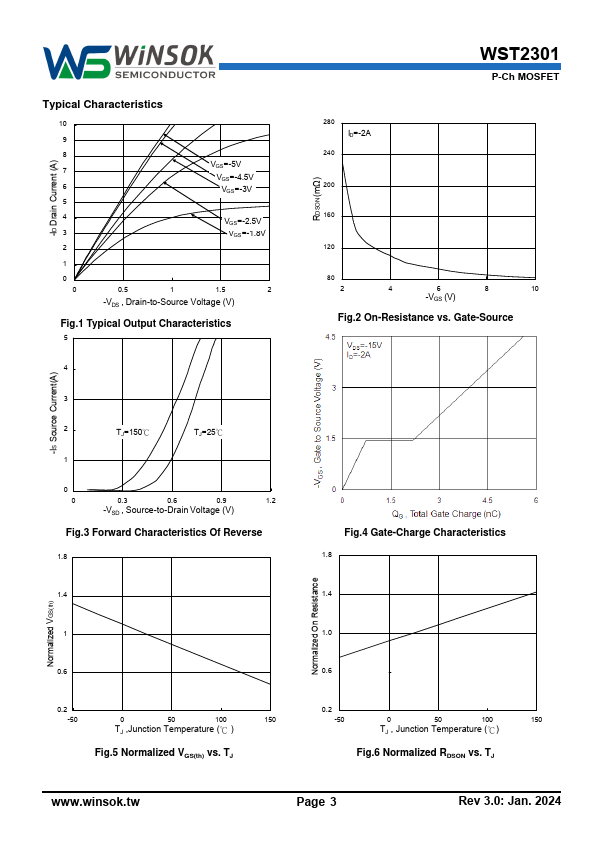

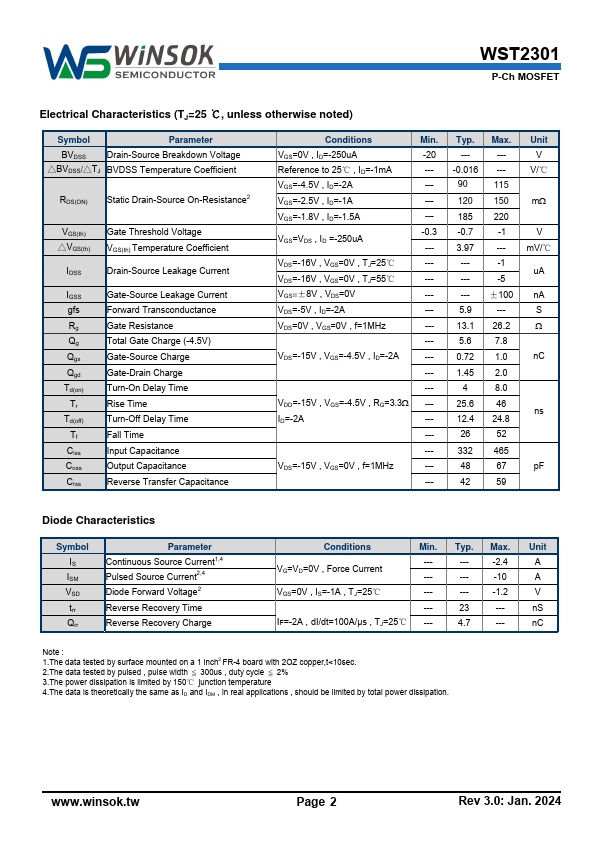

WST2301 Datasheet Preview Page 2 WST2301 Datasheet Preview Page 3

Datasheet Details

Part number:

WST2301

Manufacturer:

Winsok

File Size:

1.93 MB

Description:

P-ch mosfet.
