WST2004 Datasheet - Winsok

WST2004 N-Ch MOSFET

The WST2004 is the highest performance trench N-Ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the small power switching and load switch applications. The WST2004 meet the RoHS and Green Product requirement with full function reliability approved.

WST2004 Features

* z Lead Free Product is Acquired z Surface Mount Package z N-Channel Switch with Low RDS(on) z Operated at Low Logic Level Gate Drive WST2004 N-Ch MOSFET Product Summery BVDSS 20V RDSON 240mΩ ID 0.6A Applications z Load/Power Switching z Interfacing Switching z Battery Management for Ultra Smal

WST2004-Winsok.pdf

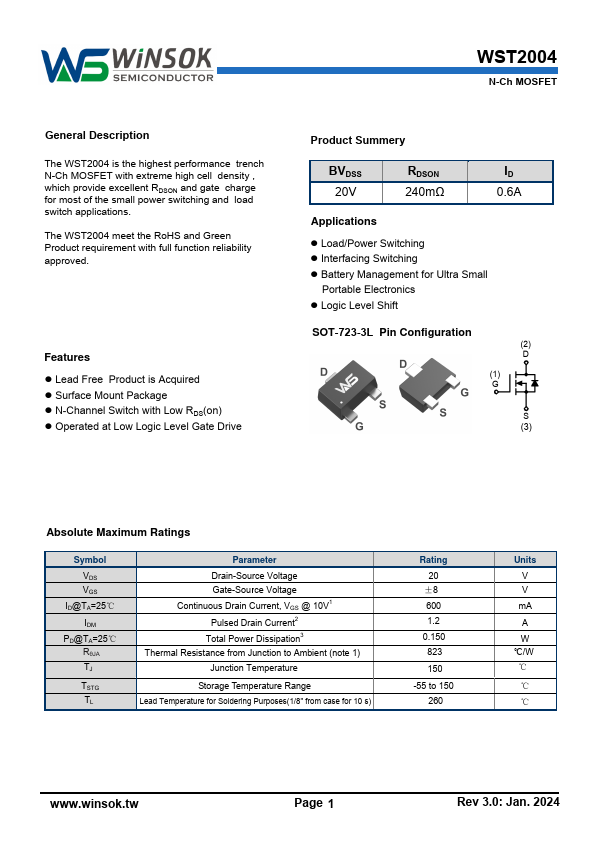

Preview of WST2004 PDF

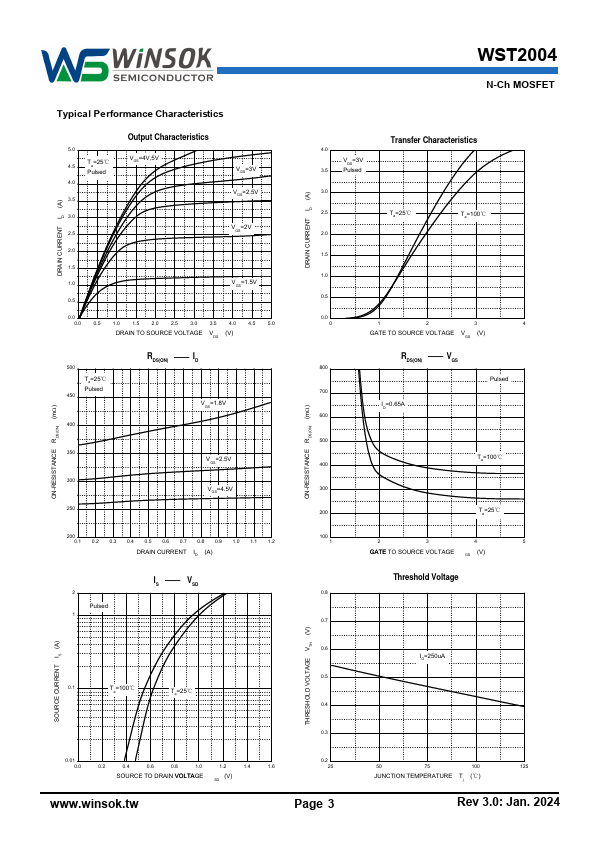

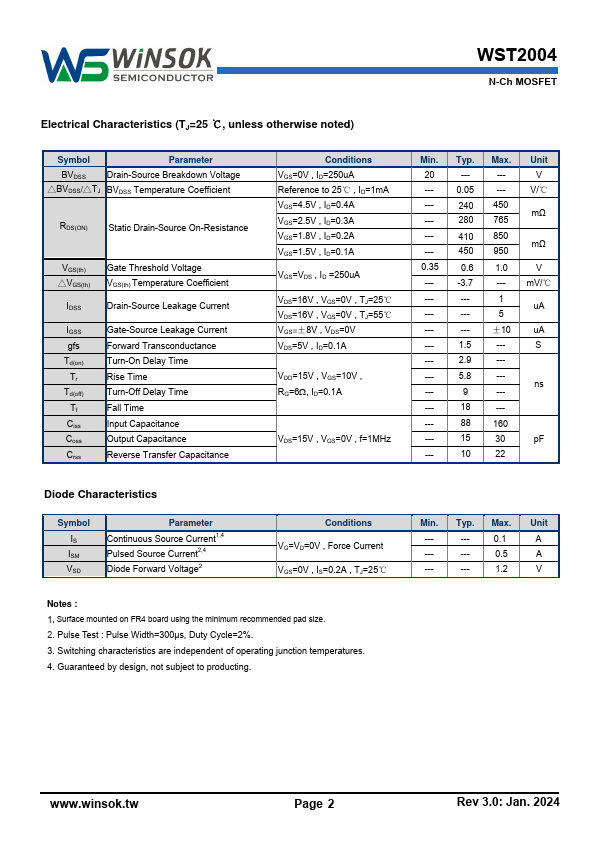

WST2004 Datasheet Preview Page 2 WST2004 Datasheet Preview Page 3

Datasheet Details

Part number:

WST2004

Manufacturer:

Winsok

File Size:

1.87 MB

Description:

N-ch mosfet.
