WST2335 - P-Ch MOSFET

Winsok

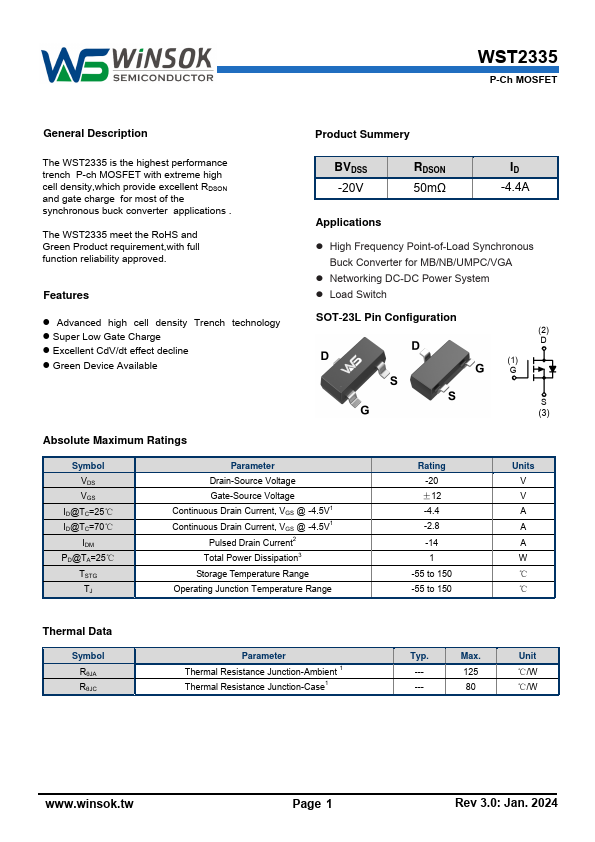

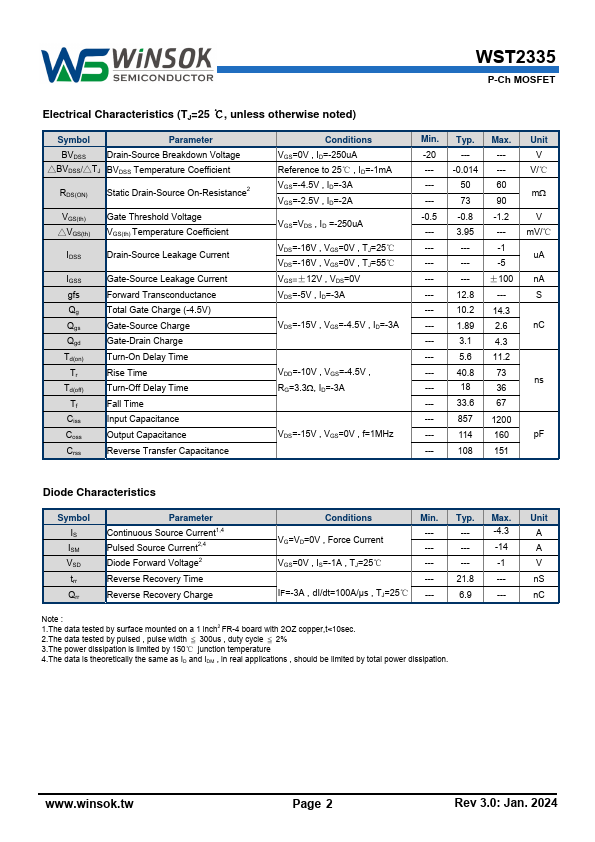

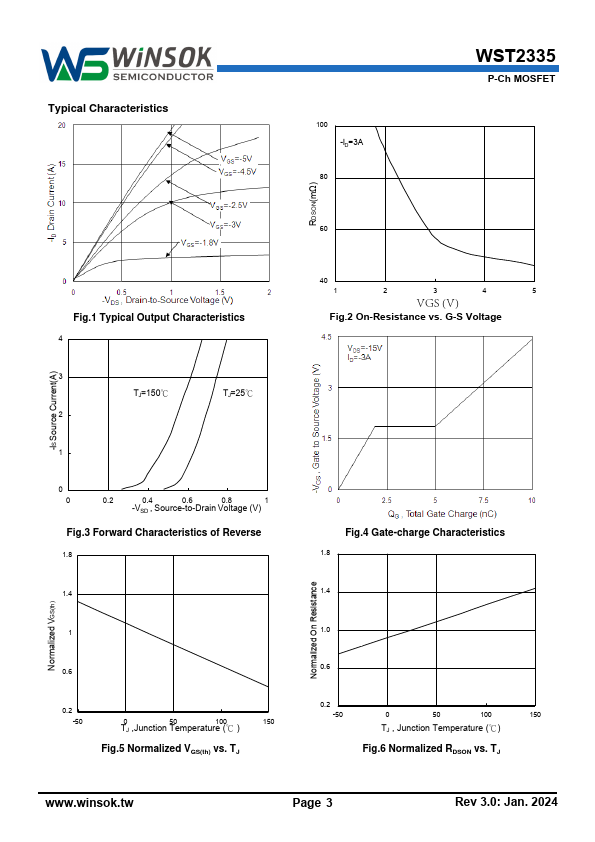

WST2335 Datasheet Preview — Preview of WST2335 PDF

Datasheet Details

Part number	WST2335
Manufacturer	Winsok
File Size	1.68 MB
Description	P-Ch MOSFET
Datasheet	WST2335-Winsok.pdf

WST2335 Product details

Description

The WST2335 is the highest performance trench P-ch MOSFET with extreme high cell density,which provide excellent RDSON and gate charge for most of the synchronous buck converter applications .

Features

z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z Green Device Available Product Summery BVDSS -20V RDSON 50mΩ ID -4.4A.
