WST2N7002 Datasheet - Winsok

WST2N7002 N-Ch MOSFET

The WST2N7002 is the highest performance trench N-CH MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the small power switching and load switch applications. The WST2N7002 meet the RoHS and Green Product requirement with full function reliability appr.

WST2N7002 Features

* z High-speed switching z Green Devcie Available Product Summery BVDSS 60V RDSON 2000mΩ ID 0.18A Applications z High Frequency Point-of-Load Synchronous Buck Converter for MB/NB/UMPC z Networking DC-DC Power System z Load Switch SOT-23L Pin Configuration (2) D (1) G S (3) Absolute Maximum Ra

WST2N7002-Winsok.pdf

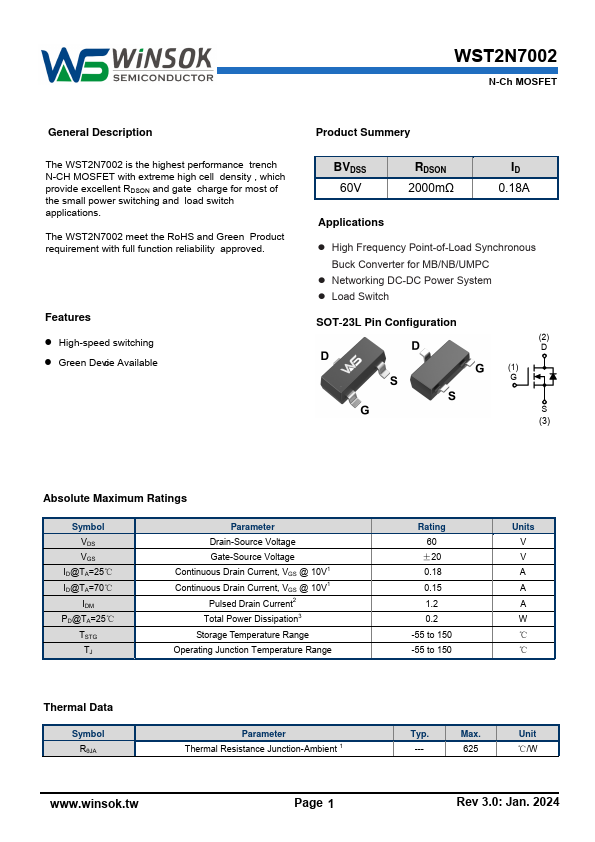

Preview of WST2N7002 PDF

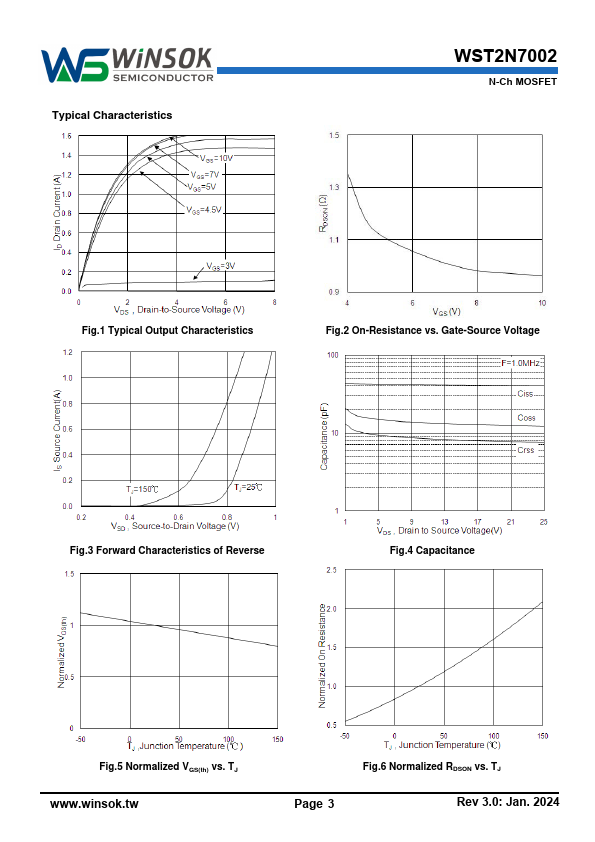

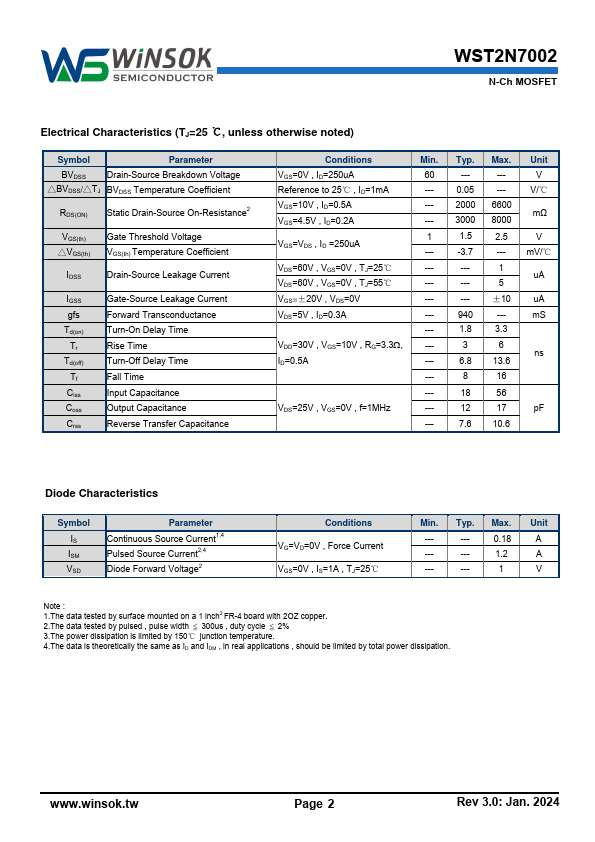

WST2N7002 Datasheet Preview Page 2 WST2N7002 Datasheet Preview Page 3

Datasheet Details

Part number:

WST2N7002

Manufacturer:

Winsok

File Size:

2.10 MB

Description:

N-ch mosfet.
