WST2305A - P-Ch MOSFET

Winsok

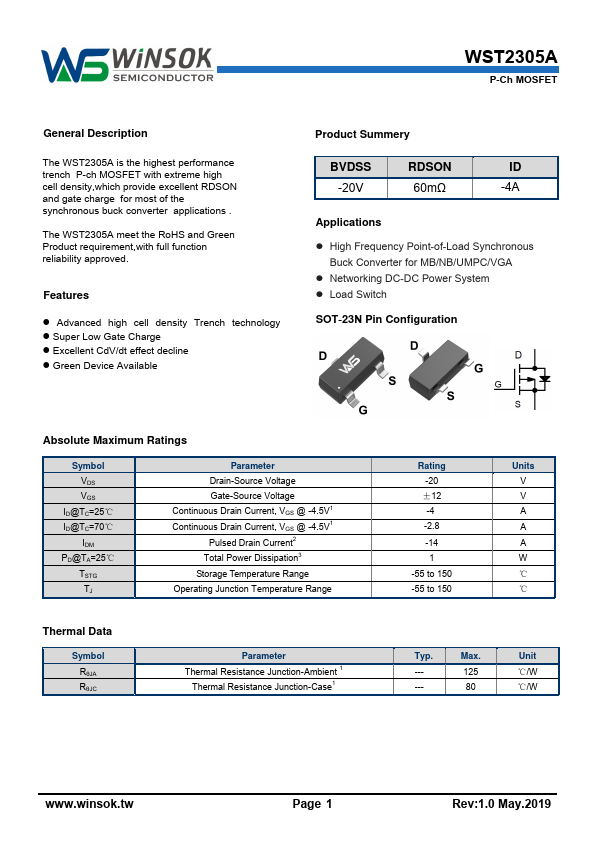

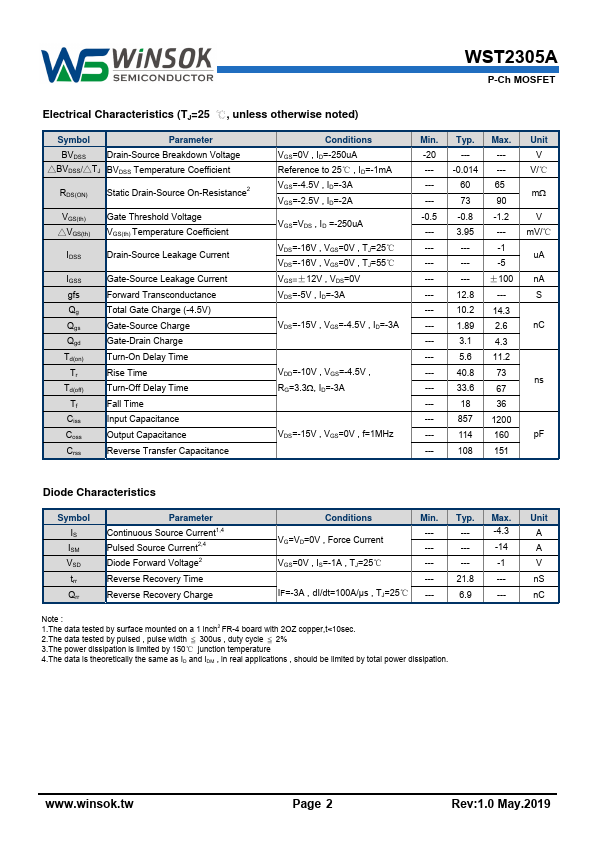

WST2305A Datasheet Preview — Preview of WST2305A PDF

Datasheet Details

Part number	WST2305A
Manufacturer	Winsok
File Size	1.24 MB
Description	P-Ch MOSFET
Datasheet	WST2305A-Winsok.pdf

WST2305A Product details

Description

The WST2305A is the highest performance trench P-ch MOSFET with extreme high cell density,which provide excellent RDSON and gate charge for most of the synchronous buck converter applications .

Features

z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z Green Device Available Product Summery BVDSS RDSON ID -20V 60mΩ -4A.
