WST3408S Datasheet - Winsok

WST3408S N-Ch MOSFET

The WST3408S is the highest performance trench N-Ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The WST3408S meet the RoHS and Green Product requirement with full function reliability approved. Featur.

WST3408S Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent Cdv/dt effect decline z Green Device Available Product Summery BVDSS 30V RDSON 25mΩ ID 5.0A Applications z High Frequency Point-of-Load Synchronous s Small power switching for MB/NB/UMPC/VGA z Networking DC-DC P

WST3408S-Winsok.pdf

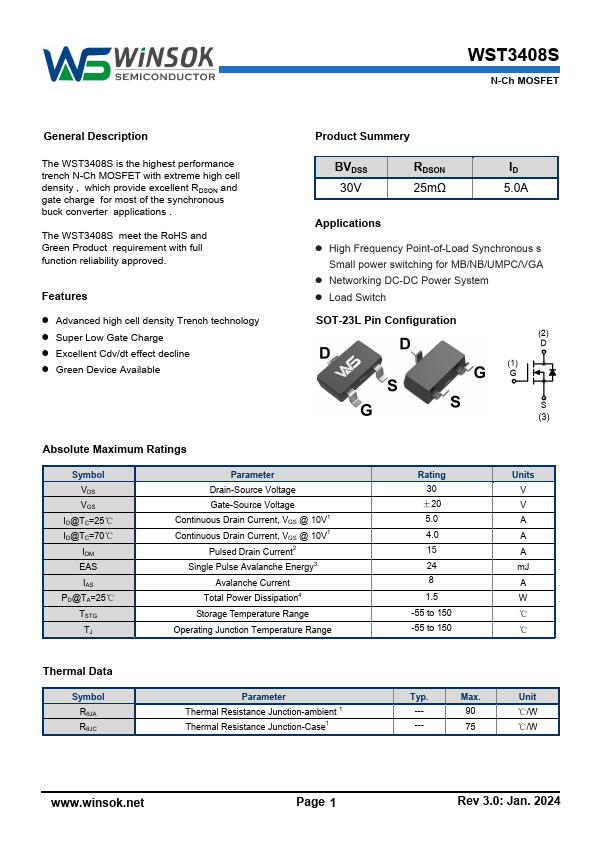

Preview of WST3408S PDF

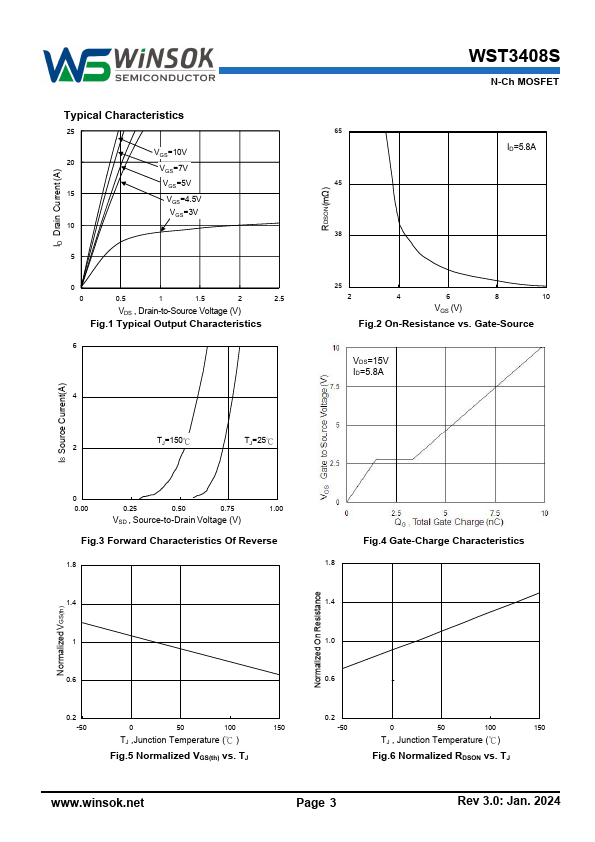

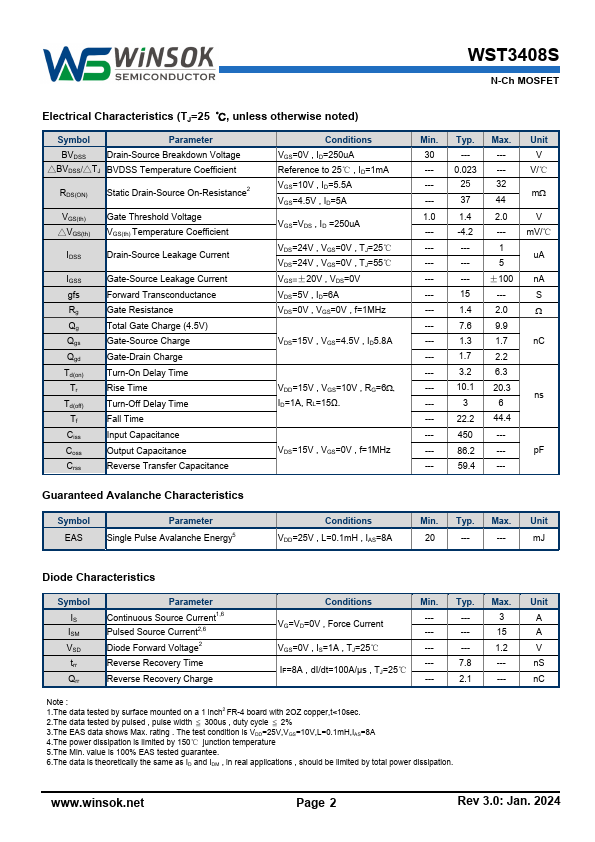

WST3408S Datasheet Preview Page 2 WST3408S Datasheet Preview Page 3

Datasheet Details

Part number:

WST3408S

Manufacturer:

Winsok

File Size:

2.33 MB

Description:

N-ch mosfet.
