WST3404A Datasheet - Winsok

WST3404A N-Ch MOSFET

The WST3404A is the highest performance trench N-Ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The WST3404A meet the RoHS and Green Product requirement with full function reliability approved. Featur.

WST3404A Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent Cdv/dt effect decline z Green Device Available Product Summery BVDSS 30V RDSON 30mΩ ID 5.5A Applications z High Frequency Point-of-Load Synchronous s Small power switching for MB/NB/UMPC/VGA z Networking DC-DC P

WST3404A Datasheet (2.52 MB)

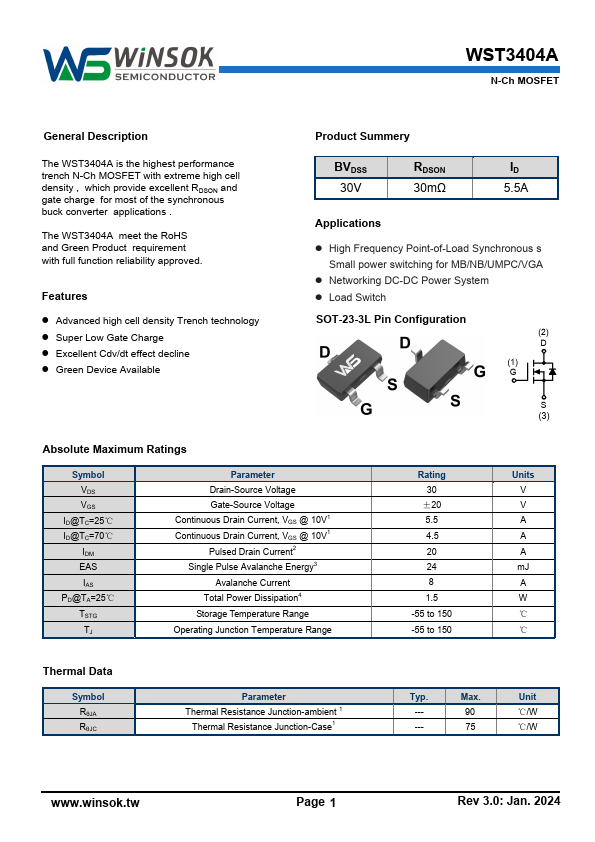

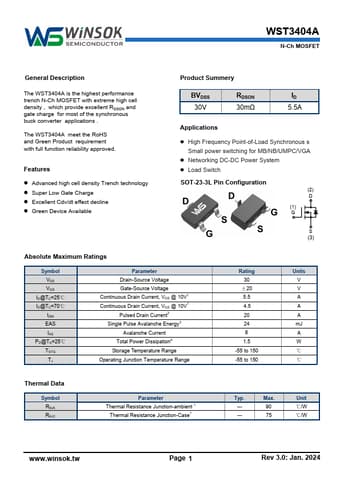

Preview of WST3404A PDF

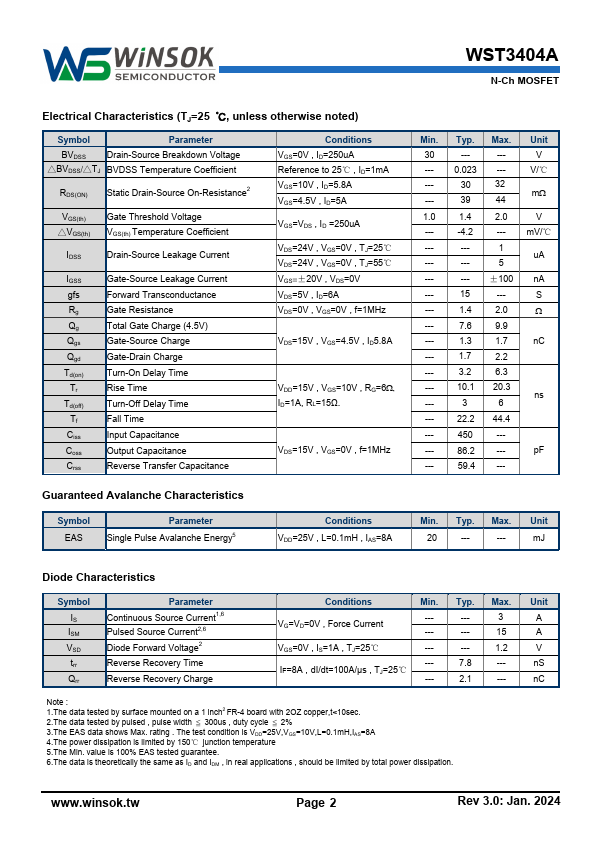

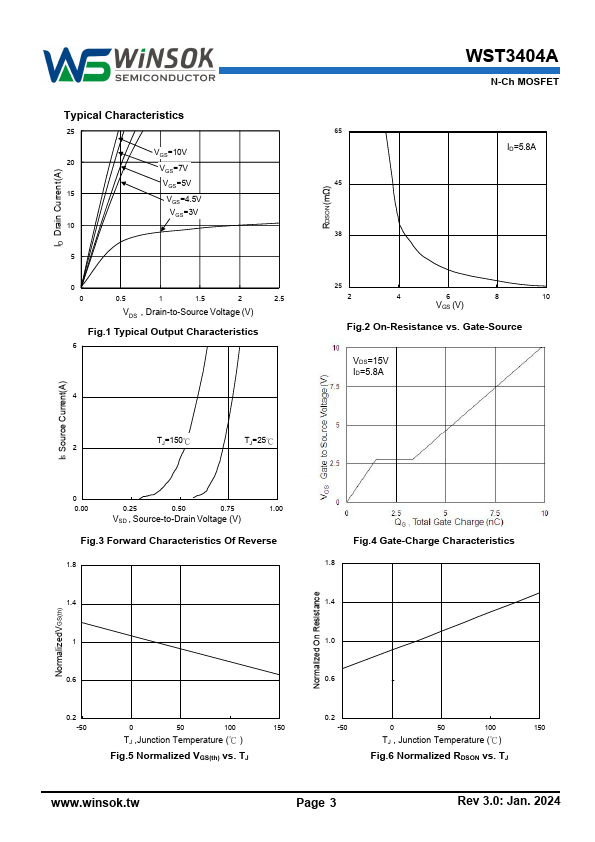

WST3404A Datasheet Preview Page 2 WST3404A Datasheet Preview Page 3

Datasheet Details

Part number:

WST3404A

Manufacturer:

Winsok

File Size:

2.52 MB

Description:

N-ch mosfet.
