E3M0075120D - Silicon Carbide Power MOSFET

Wolfspeed

📥 Download Datasheet

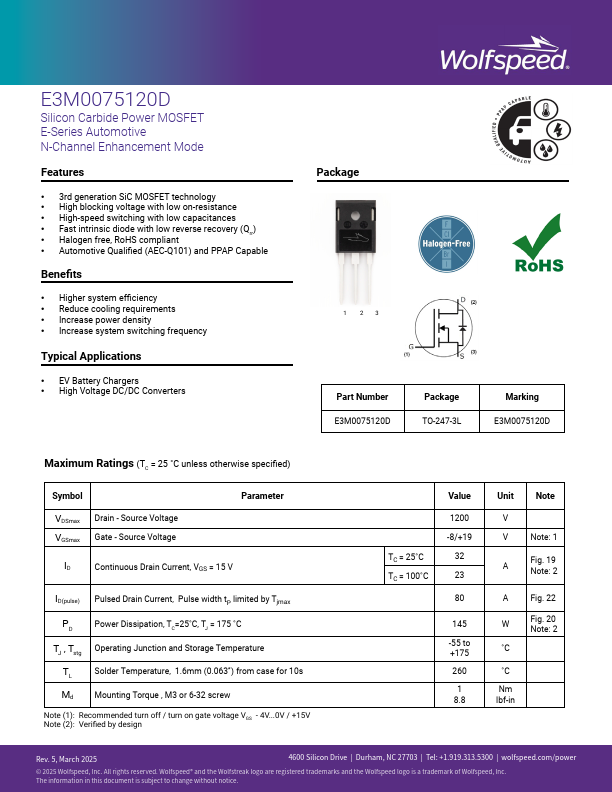

E3M0075120D Datasheet Preview — Preview of E3M0075120D PDF

datasheet Preview Page 2

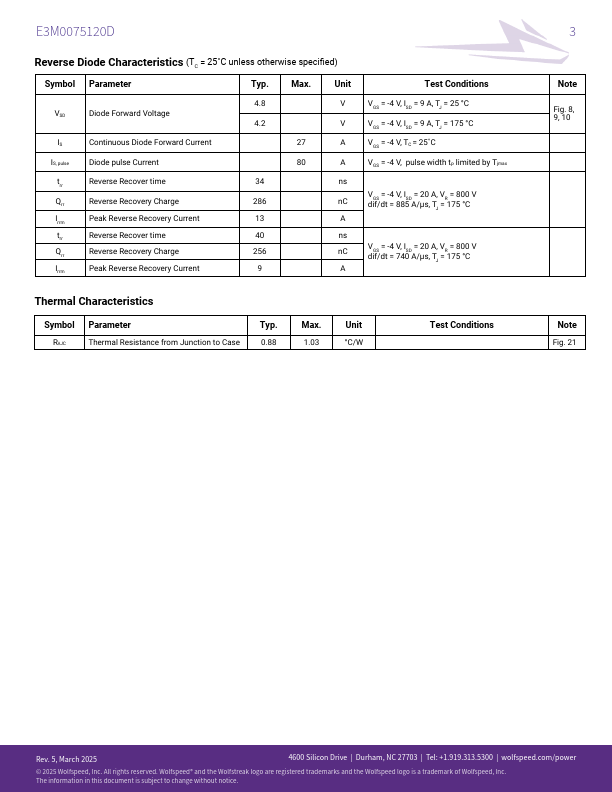

datasheet Preview Page 3

Datasheet Details

Part number	E3M0075120D
Manufacturer	Wolfspeed
File Size	966.01 KB
Description	Silicon Carbide Power MOSFET
Datasheet	E3M0075120D-Wolfspeed.pdf

E3M0075120D Product details

Features

3rd generation SiC MOSFET technology.
High blocking voltage with low on-resistance.
High-speed switching with low capacitances.
Fast intrinsic diode with low reverse recovery (Qrr) Halogen free, RoHS compliant.
Automotive Qualified (AEC-Q101) and PPAP Capable Benefits.
Higher system efficiency.
Reduce cooling requirements.
Increase power density.
Increase system switching frequency Package 1 23.
