BAV99W, BAV99W_Won, SURFACE MOUNT FAST SWITCHING DIODE

® WON-TOP ELECTRONICS BAV99W SURFACE MOUNT FAST SWITCHING DIODE Pb .

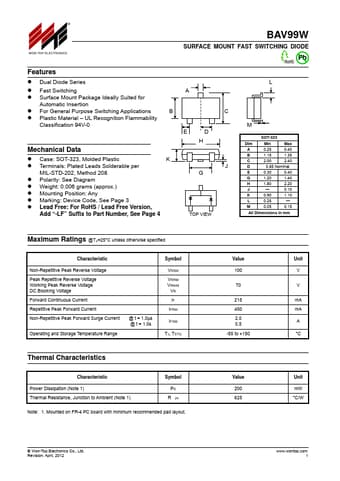

datasheet Preview Page 1 from Datasheet4u.com

BAV99W_Won-TopElectronics.pdf

BAV99W Datasheet Preview — This datasheet PDF includes multiple part numbers: BAV99W, BAV99W_Won. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BAV99W, BAV99W_Won

Manufacturer:

Won-Top Electronics

File Size:

85.18 KB

Description:

SURFACE MOUNT FAST SWITCHING DIODE

Note:

This datasheet PDF includes multiple part numbers: BAV99W, BAV99W_Won.
Please refer to the document for exact specifications by model.

Features

* Dual Diode Series
* Fast Switching
* Surface Mount Package Ideally Suited for Automatic Insertion

Applications

* Plastic Material
* UL Recognition Flammability Classification 94V-0 B Mechanical Data
* Case: SOT-323, Molded Plastic
* Terminals: Plated Leads Solderable per MIL-STD-202, Method 208
* Polarity: See Diagram
* Weight: 0.006 grams (approx. )
* Mounting Position: Any
