S3JB - 3.0A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE

Product Overview

Won-Top Electronics

📥 Download Datasheet

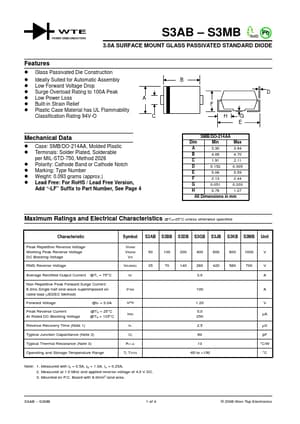

S3JB 3.0A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE by Won-Top Electronics - Datasheet Preview — Datasheet preview – S3JB

Datasheet Details

Part number	S3JB
Manufacturer	Won-Top Electronics
File Size	37.67 KB
Description	3.0A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE
Datasheet	S3JB Datasheet
Note	This datasheet PDF includes multiple part numbers: S3JB, S3JB-Won. Please refer to the document for exact specifications by model.
Additional preview pages of the S3JB datasheet.

Product details

Features

! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop ! Surge Overload Rating to 100A Peak ! Low Power Loss ! Built-in Strain Relief ! Plastic Case Material has UL Flammability A B F Classification Rating 94V-O C HG E Mechanical Data ! Case: SMB/DO-214AA, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathod.
