XA2317 Datasheet, Regulator, XINNA SEMI

XA2317 Features

  • Regulator Up to 94% Efficiency :Low voltage start-up 0.9V Shut-down current: < 1µA : ~Input voltage 0.9V 4.4V : ~Output voltage 2.5V 4.3V (Up to 5V with Schottky) ΩLow switch on resistance RDS(ON

PDF File Details

Part number:

XA2317

Manufacturer:

XINNA SEMI

File Size:

2.79MB

Download:

📄 Datasheet

Description:

Synchronous boost dc/dc regulator. The XA2317 is high efficiency synchronous, PWM step-up DC/DC converters optimized to provide a high efficient solution to medium powe

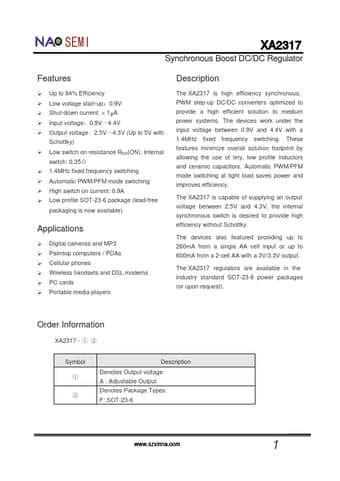

Datasheet Preview: XA2317 📥 Download PDF (2.79MB)
Page 2 of XA2317 Page 3 of XA2317

XA2317 Application

  • Applications Digital cameras and MP3 Palmtop computers / PDAs Cellular phones Wireless handsets and DSL modems PC cards Portable media players Desc
