XA2001 Datasheet - Sino Wealth

Low Speed USB Micro-controller

XA2001 Features

* CMOS technology for low power consumption

* Operating voltage: 4.4V to 5.25V

* 3.3V regulator output - Maximum driving current 35mA

* 8-bit CMOS Micro-Processor (uP) core - Instruction set is compatible with standard 8051

* Program Memory - 16K Bytes Program

XA2001 General Description

The XA2001 is designed for high performance Low-speed USB devices. It contains an 8051 micro-controller, Low-Speed USB SIE, Transceiver and data FIFO, build-in 3.3V regulator, on-chip 16K bytes Mask ROM and internal 256 bytes data RAM, Time Capture circuit, Base Timer, programmable Watch-dog Timer a.

XA2001 Datasheet (512.18 KB)

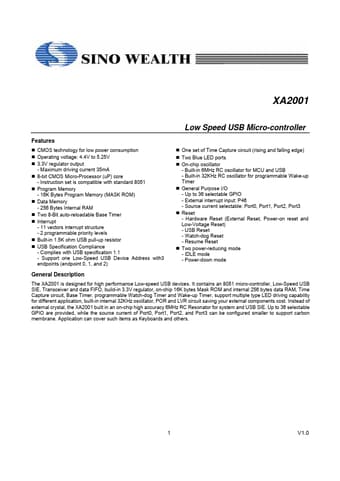

XA2001 Datasheet Preview — Preview of XA2001 PDF

Datasheet Details

Part number:

XA2001

Manufacturer:

Sino Wealth

File Size:

512.18 KB

Description:

Low speed usb micro-controller.
