XA2361

PFM Step-Up DC-DC Converter

XA2361 Datasheet (874.20 KB)

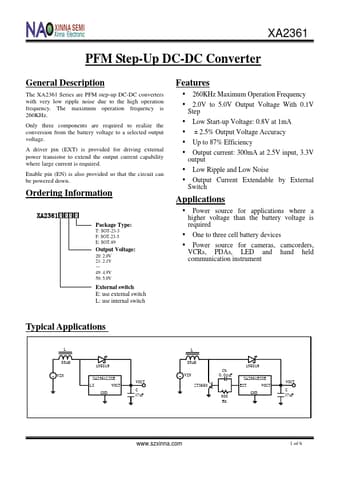

Preview of XA2361 PDF Datasheet

Datasheet Details

Part number:

XA2361

Manufacturer:

XINNA SEMI

File Size:

874.20 KB

Description:

Pfm step-up dc-dc converter

XA2361 Features

* y 260KHz Maximum Operation Frequency y 2.0V to 5.0V Output Voltage With 0.1V Step y Low Start-up Voltage: 0.8V at 1mA y ±2.5% Output Voltage Accuracy y Up to 87% Efficiency y Output current: 300mA at 2.5V input, 3.3V output y Low Ripple a

XA2361 General Description

The XA2361 Series are PFM step-up DC-DC converters with very low ripple noise due to the high operation frequency. The maximum operation frequency is 260KHz. Only three components are required to realize the conversion from the battery voltage to a selected output voltage. A driver pin (EXT) is prov.
