XA2320

Regulated Charge Pump DC/DC Converter

XA2320 Features

* Fixed 5V ± 4% Output VIN Range: 2.7V to 5V Output Current: Up to 250mA Constant Frequency Operation at All Loads Low Noise Constant Frequency (1.2MHz) Operation Automatic Soft-Start Reduces Inrush Current Shutdown Current

XA2320 General Description

The XA2320 is a low noise, constant frequency (1.2MHz) switched capacitor voltage doubler. It produce a regulated output voltage from a 2.7V to 4.5V input with up to 250mA of output current. Low external parts count (one flying capacitor and two small bypass capacitors at VIN and VOUT) make the XA23.

XA2320 Datasheet (2.48 MB)

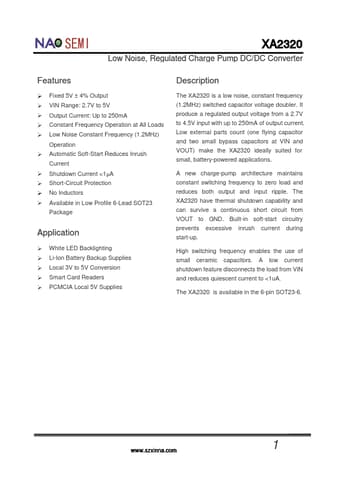

Preview of XA2320 PDF

Datasheet Details

Part number:

XA2320

Manufacturer:

XINNA SEMI

File Size:

2.48 MB

Description:

Regulated charge pump dc/dc converter.
