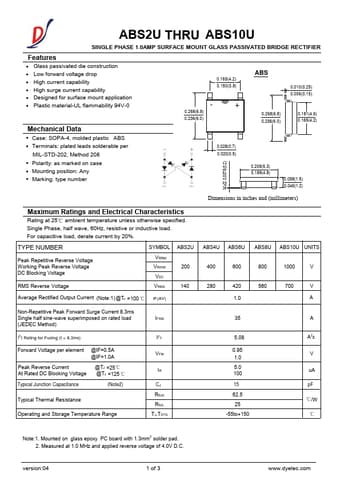

ABS8U, ABS2U - SINGLE PHASE 1.0AMP SURFACE MOUNT GLASS PASSIVATEDBRIDGERECTIFIER

Datasheet Details

Part number: ABS8U, ABS2U
Manufacturer: XINNUO
File Size: 288.57 KB
Datasheet: ABS2U-XINNUO.pdf
Description: SINGLE PHASE 1.0AMP SURFACE MOUNT GLASS PASSIVATEDBRIDGERECTIFIER
Note: This datasheet PDF includes multiple part numbers: ABS8U, ABS2U.
Please refer to the document for exact specifications by model.

Glass passivated die construction.
Low forward voltage drop.
High current capability.
High surge current capability.
Designed for surface mount application.
Plastic material-UL flammability 94V-0 Mechanical Data 0.165(4.2) 0.150(3.8) - + 0.268(6.8) 0.236(6.0) ABS 0.010(0.25) 0.006(0.15) 0.268(6.8) 0.236(6.0) 0.181(4.6) 0.165(4.2).
Case: SOPA-4, molded plastic ABS.
Terminals: plated leads solderable per MIL-STD-202, Method 208 0.028(0.7) 0.020.
