XNS21767 - IPM

Name: XNS21767
SKU: XNS21767-1580118

📥 Download Datasheet

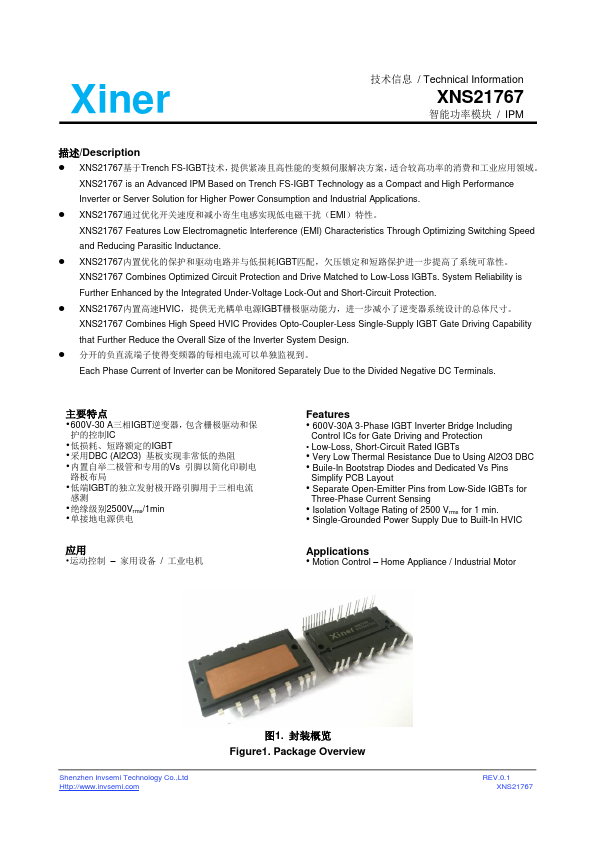

XNS21767 Datasheet Preview — Preview of XNS21767 PDF

Datasheet Details

Part number	XNS21767
Manufacturer	Xiner
File Size	437.65 KB
Description	IPM
Datasheet	XNS21767-Xiner.pdf

XNS21767 Product details

Description

XNS21767Trench FS-IGBT，，。 XNS21767 is an Advanced IPM Based on Trench FS-IGBT Technology as a Compact and High Performance Inverter or Server Solution for Higher Power Consumption and Industrial Applications. XNS21767（EMI）。 XNS21767

Features

Low Electromagnetic Interference (EMI) Characteristics Through Optimizing Switching Speed and Reducing Parasitic Inductance.
XNS21767IGBT，。 XNS21767 Combines Optimized Circuit Protection and Drive Matched to Low-Loss IGBTs. System Reliability is Further Enhanced by the Integrated Under-Voltage Lock-Out and Short-Circuit Protection.
XNS21767HVIC，IGBT，。 XNS21767 Combines High Speed HVIC Provides Opto-Coupler-Less Single-Supply IGBT Gate Driving Capability that Further Reduce the Overal.
