XNS20S73E6 IPM

XNS20S73E6 Description

/ Technical Information XNS20S73E6 / IPM /.
XNS20S73E6Trench FS-IGBT，DIP25 IPM，、PMSM 。 XNS20S73E6 is an Advanced DIP25 IPM Based on Trench FS-IGBT Technology, Providing a Fully-featured, H.

XNS20S73E6 Features

* Including Under-voltage Lockouts, Over-current Shutdown, Thermal Monitoring, Fault Reporting.
* XNS20S73E6HVIC，IGBT，。 XNS20S73E6 Combines High Speed HVIC Provides Opto-Coupler-Less Single-Supply IGBT Gate Driving Capability that Further Reduce the Overall Size of the Inverter System Design.

XNS20S73E6 Applications

* Motion Control
* Home Appliance / Industrial Motor Http://www. invsemi. com 1. Figure1. Package Overview 1 / 14 Datasheet REV 1.1 XNS20S73E6 / Absolute Maximum Ratings / Technical Information XNS20S73E6 / IPM (IGBT，) / Inverter Part (Each IGBT ® Unless Otherwise Specified)

📥 Download Datasheet

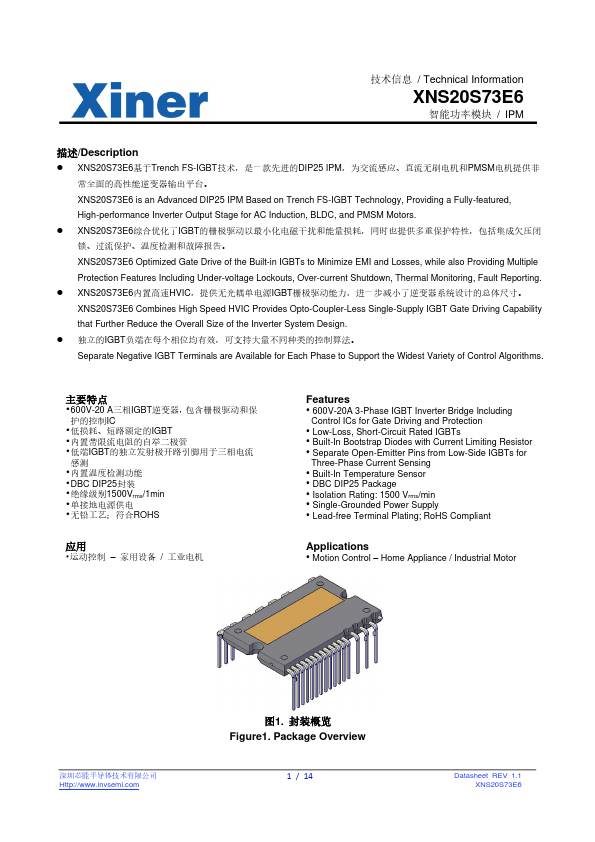

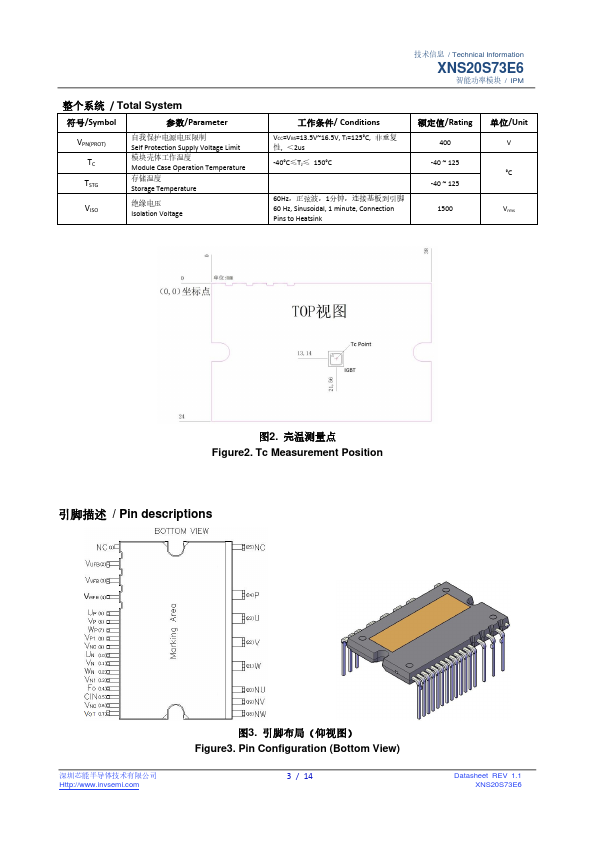

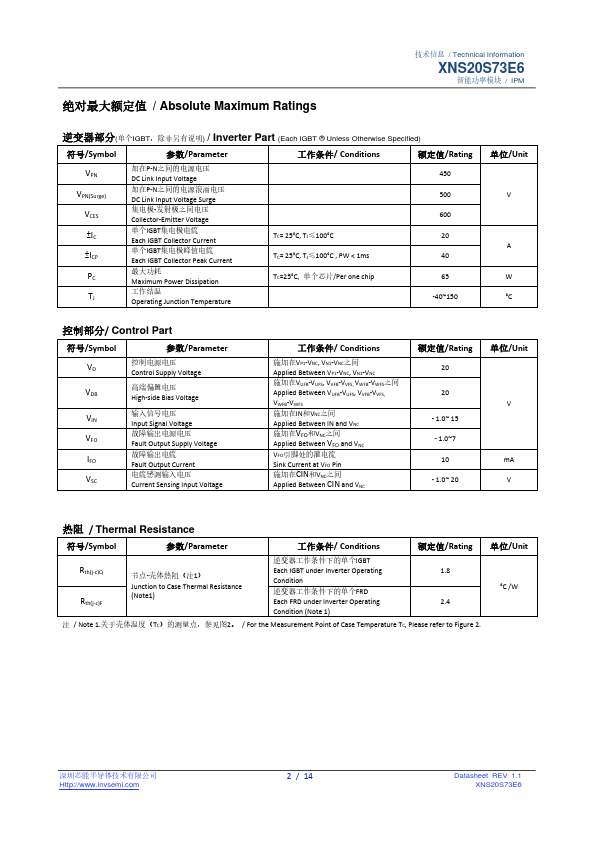

XNS20S73E6 Datasheet Preview — Preview of XNS20S73E6 PDF

Datasheet Details

Part number: XNS20S73E6
Manufacturer: Xiner
File Size: 0.99 MB
Datasheet: XNS20S73E6-Xiner.pdf
Description: IPM
