XNS30S73E6 - IPM

XNS30S73E6 Datasheet Preview — Preview of XNS30S73E6 PDF

Datasheet Details

Part number	XNS30S73E6
Manufacturer	Xiner
File Size	0.99 MB
Description	IPM
Datasheet	XNS30S73E6-Xiner.pdf

XNS30S73E6 Product details

Description

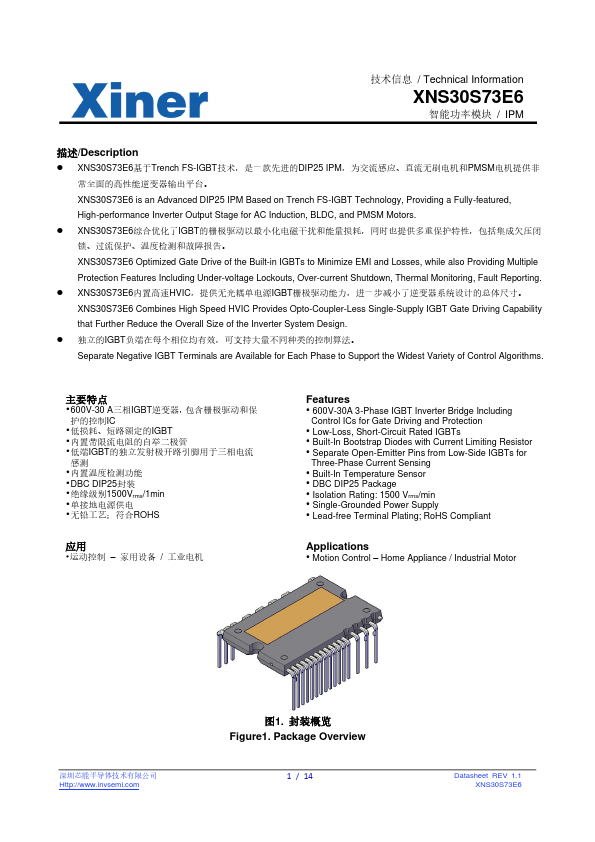

XNS30S73E6Trench FS-IGBT，DIP25 IPM，、PMSM 。 XNS30S73E6 is an Advanced DIP25 IPM Based on Trench FS-IGBT Technology, Providing a Fully-featured, High-performance Inverter Output Stage for AC Induction, BLDC, and PMSM Motors. XNS30S73E6IGBT，，、、。 XNS30S73E6 Optimized Gate Drive of the Built-in IGBTs to Minimize EMI and Losses, while also Providing Multiple Protection

Features

Including Under-voltage Lockouts, Over-current Shutdown, Thermal Monitoring, Fault Reporting.
XNS30S73E6HVIC，IGBT，。 XNS30S73E6 Combines High Speed HVIC Provides Opto-Coupler-Less Single-Supply IGBT Gate Driving Capability that Further Reduce the Overall Size of the Inverter System Design.
IGBT，。 Separate Negative IGBT Terminals are Available for Each Phase to Support the Widest Variety of Control Algorithms.
600V-30 AIGBT， IC.
、IGBT.
IGBT.
