GBU12005 - Single Phase 12.0Amp Glass passivated Bridge Rectifiers

📥 Download Datasheet

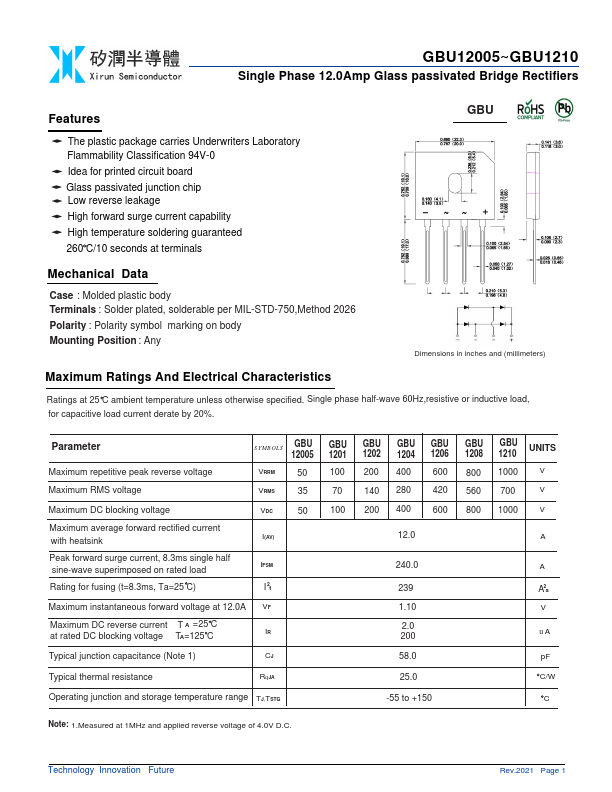

GBU12005 Datasheet Preview — Preview of GBU12005 PDF

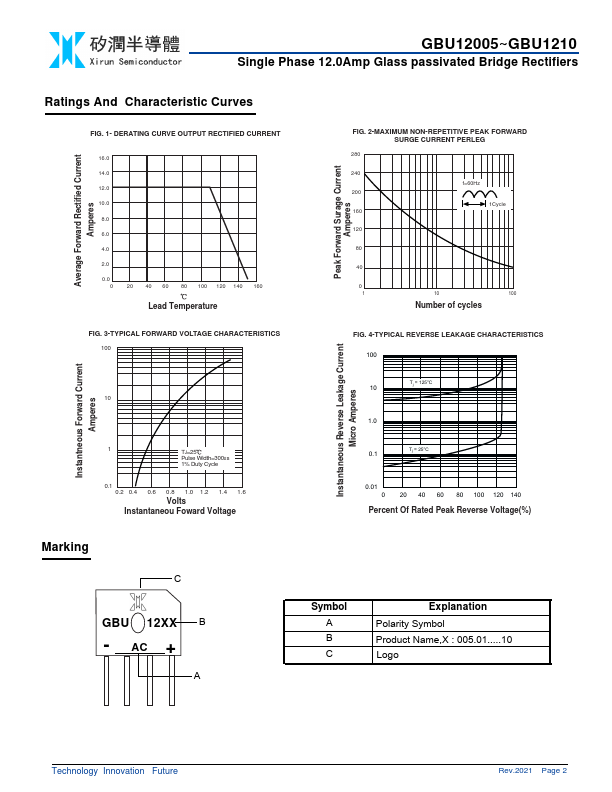

datasheet Preview Page 2

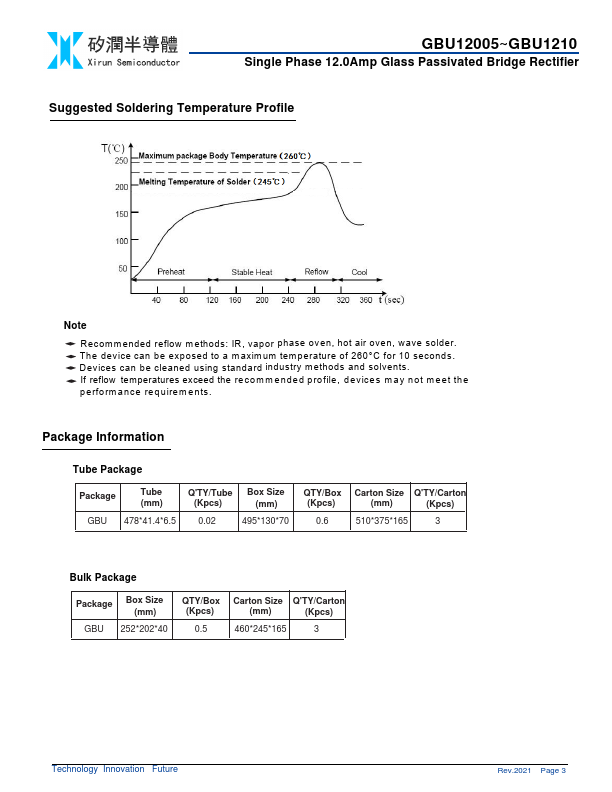

datasheet Preview Page 3

Datasheet Details

Part number	GBU12005
Manufacturer	Xirun
File Size	2.73 MB
Description	Single Phase 12.0Amp Glass passivated Bridge Rectifiers
Datasheet	GBU12005-Xirun.pdf

GBU12005 Product details

Features

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Idea for printed circuit board Glass passivated junction chip Low reverse leakage High forward surge current capability High temperature soldering guaranteed 260 C/10 seconds at terminals GBU Mechanical Data Case : Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Dimensions in inches and (millimeters) Max.
