GBU1210, GBU12005 Single Phase 12.0Amp Glass passivated Bridge Rectifiers

Description

GBU12005~GBU1210 Single Phase 12.0Amp Glass passivated Bridge Rectifiers .

📥 Download Datasheet

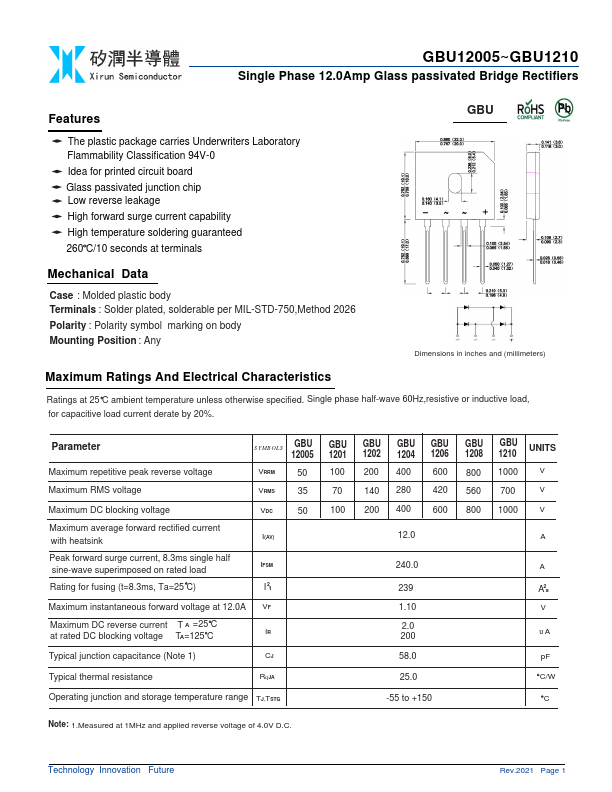

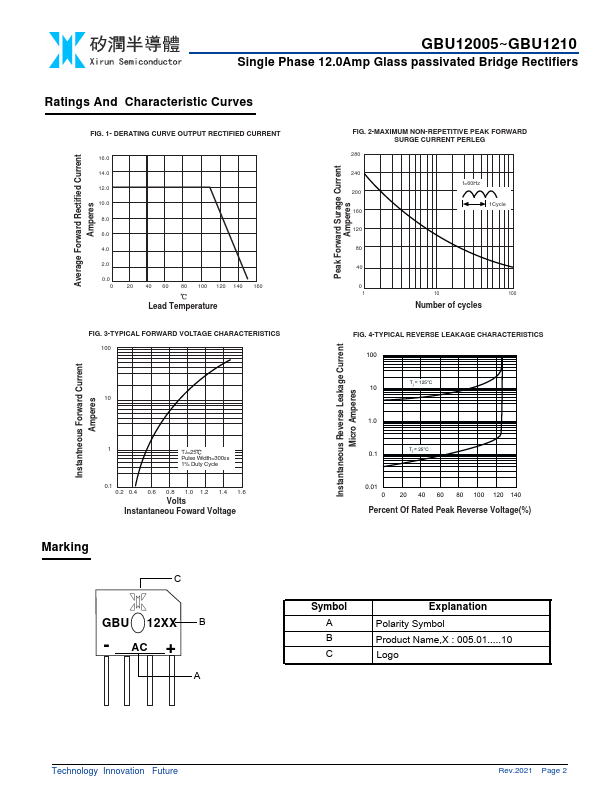

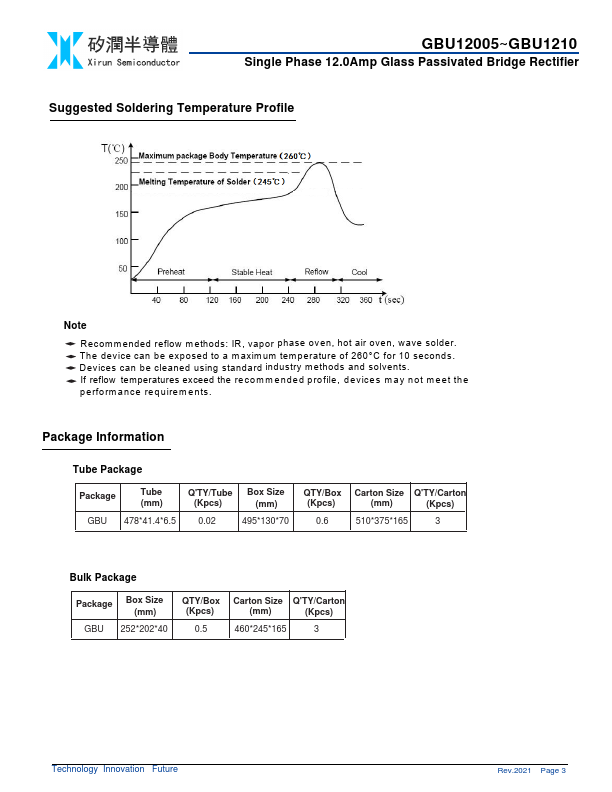

GBU1210 Datasheet Preview — This datasheet PDF includes multiple part numbers: GBU1210, GBU12005. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: GBU1210, GBU12005
Manufacturer: Xirun
File Size: 2.73 MB
Datasheet: GBU12005-Xirun.pdf
Description: Single Phase 12.0Amp Glass passivated Bridge Rectifiers
Note: This datasheet PDF includes multiple part numbers: GBU1210, GBU12005.
Please refer to the document for exact specifications by model.

Features

* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Idea for printed circuit board Glass passivated junction chip Low reverse leakage High forward surge current capability High temperature soldering guaranteed 260 C/10 seconds at terminals GBU Mechanical Data Case
