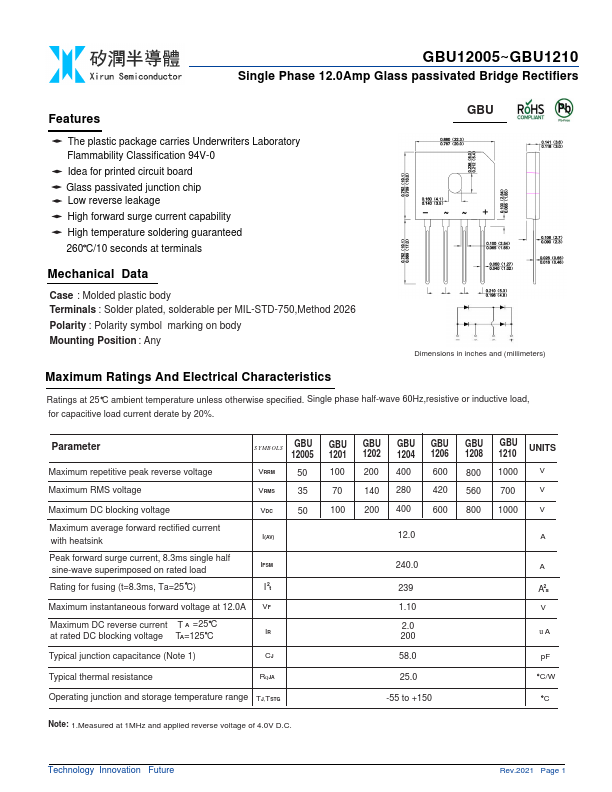

GBU1204 Features
* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Idea for printed circuit board Glass passivated junction chip Low reverse leakage High forward surge current capability High temperature soldering guaranteed 260 C/10 seconds at terminals GBU Mechanical Data Case
Datasheet Details
GBU1204, GBU12005
Xirun
2.73 MB
Single phase 12.0amp glass passivated bridge rectifiers.
This datasheet PDF includes multiple part numbers: GBU1204, GBU12005.
Please refer to the document for exact specifications by model.
