GBU1201, GBU12005 Single Phase 12.0Amp Glass passivated Bridge Rectifiers

GBU12005~GBU1210 Single Phase 12.0Amp Glass passivated Bridge Rectifiers .

GBU12005-Xirun.pdf

GBU1201 Datasheet Preview — This datasheet PDF includes multiple part numbers: GBU1201, GBU12005. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

GBU1201, GBU12005

Manufacturer:

Xirun

File Size:

2.73 MB

Description:

Single Phase 12.0Amp Glass passivated Bridge Rectifiers

Note:

This datasheet PDF includes multiple part numbers: GBU1201, GBU12005.
Please refer to the document for exact specifications by model.

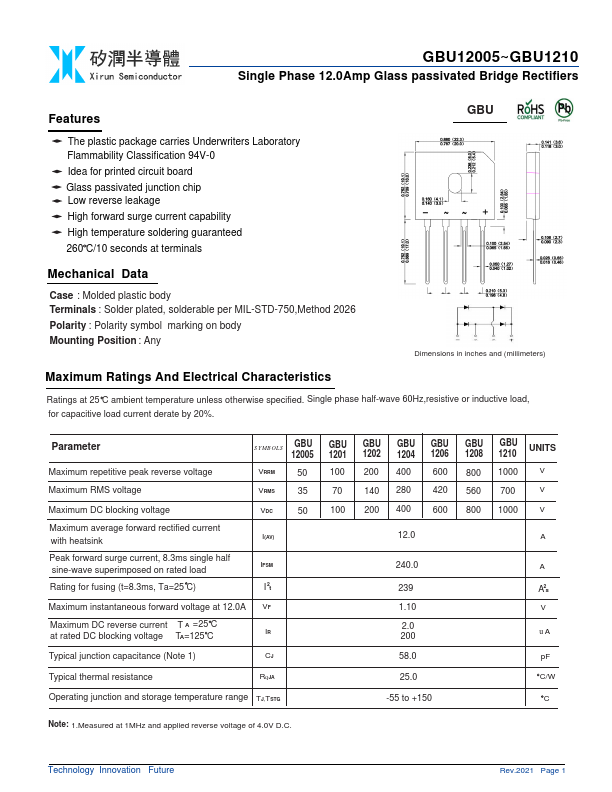

Features

* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Idea for printed circuit board Glass passivated junction chip Low reverse leakage High forward surge current capability High temperature soldering guaranteed 260 C/10 seconds at terminals GBU Mechanical Data Case
