XL7001 Datasheet, Converter, Xlsemi

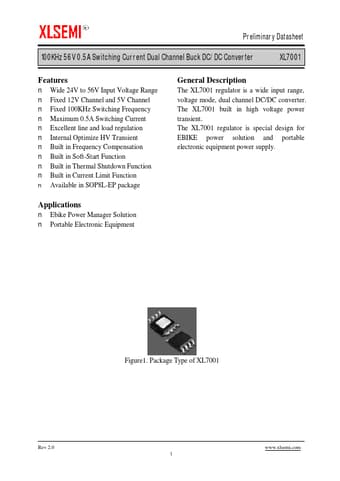

XL7001 Features

• Converter n Wide 24V to 56V Input Voltage Range n Fixed 12V Channel and 5V Channel n Fixed 100KHz Switching Frequency n Maximum 0.5A Switching Current n Excellent line and load regulation n Inter

PDF File Details

Part number:

XL7001

Manufacturer:

Xlsemi

File Size:

115.09kb

Download:

📄 Datasheet

Description:

100khz 56v 0.5a switching current dual channel buck dc/dc converter. The XL7001 regulator is a wide input range, voltage mode, dual channel DC/DC converter. The XL7001 built in high voltage power transi

XL7001 Application

• Applications n Ebike Power Manager Solution n Portable Electronic Equipment General Description The XL7001 regulator is a wide input range, voltage
