XL7005A Datasheet - Xlsemi

0.4A 150KHz 80V Buck DC-to-DC Converter

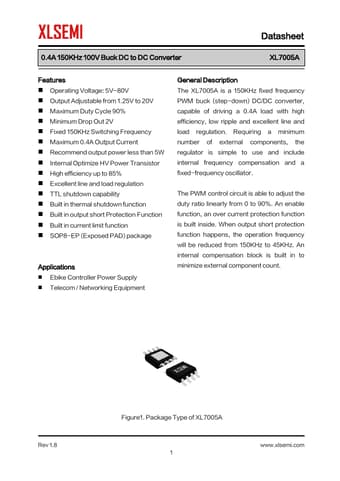

XL7005A Features

* Maximum Input Voltage 100V

* Output Adjustable from 1.25V to 20V

* Maximum Duty Cycle 90%

* Minimum Drop Out 2V

* Fixed 150KHz Switching Frequency

* Maximum 0.4A Output Current

* Recommend output power less than 5W

* Internal Optimize HV Power Transistor

* High

XL7005A General Description

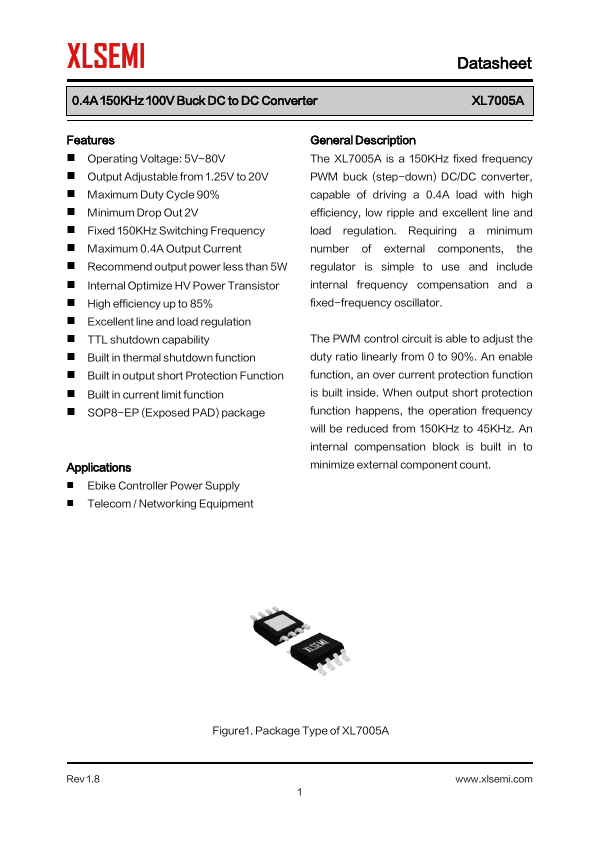

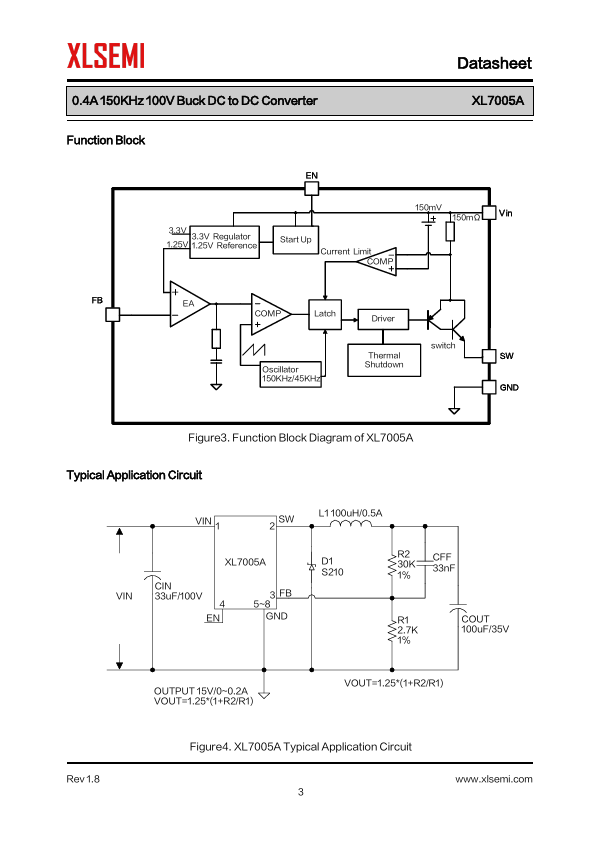

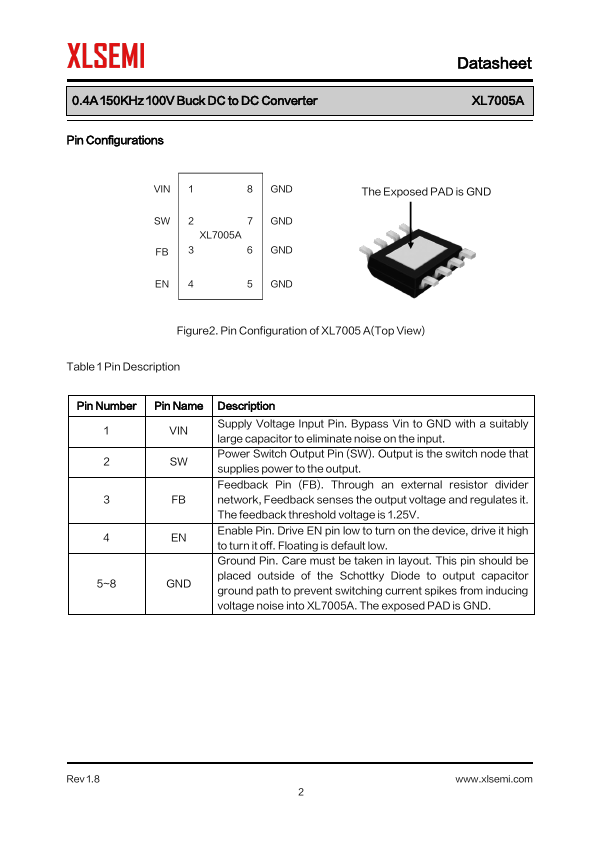

The XL7005A is a 150KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 0.4A load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compe.

XL7005A Datasheet (324.70 KB)

XL7005A Datasheet Preview — Preview of XL7005A PDF

Datasheet Details

Part number:

XL7005A

Manufacturer:

Xlsemi

File Size:

324.70 KB

Description:

0.4a 150khz 80v buck dc-to-dc converter.
