XL7025 0.6A 150KHz 100V Buck DC to DC Converter

XL7025 Description

Datasheet 0.6A 150KHz 100V Buck DC to DC Converter XL7025 .
The XL7025 is a 150KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 0.

XL7025 Features

* Maximum Input Voltage 100V
* Output Adjustable from 1.25V to 20V
* Maximum Duty Cycle 100%
* Minimum Drop Out 1V
* Fixed 150KHz Switching Frequency
* Maximum 0.6A Output Current
* Recommend Maximum 0.6A Output Current At 5V Output,48V Input
* Recommend Maximum 0.3A

XL7025 Applications

* Ebike Controller Power Supply

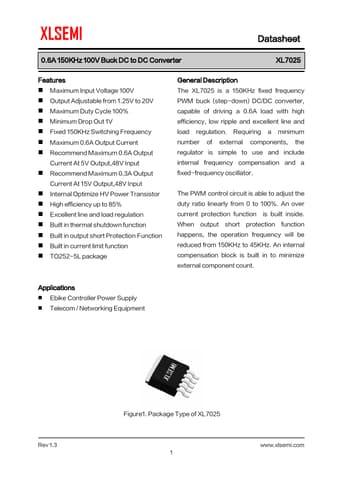

* Telecom / Networking Equipment Rev 1.3 Figure1. Package Type of XL7025 1 www. xlsemi. com 0.6A 150KHz 100V Buck DC to DC Converter Pin Configurations TO252-5L 5 4 3 2 1 Datasheet XL7025 OGND FB GND SW VIN Metal Tab GND Figure2. Pin Configuration of XL702
