XL7026 Datasheet, Converter, Xlsemi

XL7026 Features

• Converter
• Maximum Input Voltage 100V
• Maximum Duty Cycle up to 100%
• Minimum Drop Out 0.5V
• Adjust VOUT from 1.25V to 20V
• Max. IOUT=0.6A at VOUT=5V

PDF File Details

Part number:

XL7026

Manufacturer:

Xlsemi

File Size:

284.66kb

Download:

📄 Datasheet

Description:

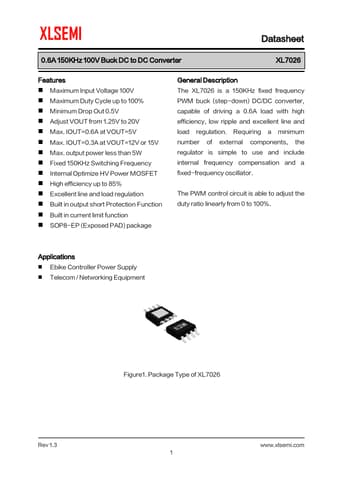

0.6a 150khz 100v buck dc to dc converter. The XL7026 is a 150KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 0.6A load with high efficiency, low

XL7026 Application

• Applications
• Ebike Controller Power Supply
• Telecom / Networking Equipment Rev 1.3 Figure1. Package Type of XL7026 www.xlsemi.c

TAGS

XL7026

Xlsemi
