XL7007 Datasheet - Xlsemi

XL7007 0.8A 180KHz 65V Buck DC/DC Converter

The XL7007 is a 180KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 0.8A load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compen.

XL7007 Features

* n n n n n n n n n n n n n Wide 10V to 65V Operating Input Range Output Adjustable from 1.25V to 50V Maximum Duty Cycle 100% Minimum Drop Out 0.3V Fixed 180KHz Switching Frequency Maximum 0.8A Switching Current Internal Optimize Power MOSFET High efficiency Excellent line and load regulation Built in

XL7007-Xlsemi.pdf

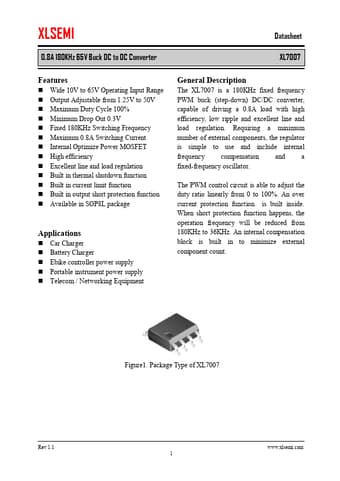

Preview of XL7007 PDF
XL7007 Datasheet Preview Page 2 XL7007 Datasheet Preview Page 3

Datasheet Details

Part number:

XL7007

Manufacturer:

Xlsemi

File Size:

257.22 KB

Description:

0.8a 180khz 65v buck dc/dc converter.
