XL7016 Datasheet, Converter, Xlsemi

XL7016 Features

• Converter
• Operation Voltage from 12V to 90V
• Maximum Duty Cycle up to 100%
• Minimum Drop Out 0.5V
• Adjust VOUT from 1.25V to VIN - 2V
• Max. IOUT=0.5A

PDF File Details

Part number:

XL7016

Manufacturer:

Xlsemi

File Size:

195.48kb

Download:

📄 Datasheet

Description:

0.5a 150khz 100v buck dc/dc converter. The XL7016 is a 150KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 0.5A load with high efficiency, low

XL7016 Application

• Applications
• Ebike Controller Power Supply

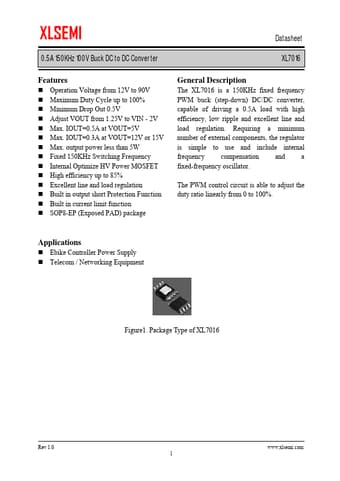

• Telecom / Networking Equipment Figure1. Package Type of XL7016 Rev 1.0 www.xlsemi.
