AF122

ANTI-SULFURATED CHIP RESISTORS

AF122 Features

* RoHS compliant

* Products with lead free terminations meet RoHS requirements

* Pb-glass contained in electrodes

* Resistor element and glass are exempted by RoHS

* Reducing environmentally hazardous wastes

* High component and equipment reliability

* Saving of PCB space

AF122 General Description

POWER RATING AF122 / AF124 / AF164 rated power at 70 °C is 1/16 W RATED VOLTAGE The DC or AC (rms) continuous working voltage corresponding to the rated power is determined by the following formula: V= (P X R) or max. working voltage whichever is less Where V=Continuous rated DC or AC (rms) working .

AF122 Datasheet (522.86 KB)

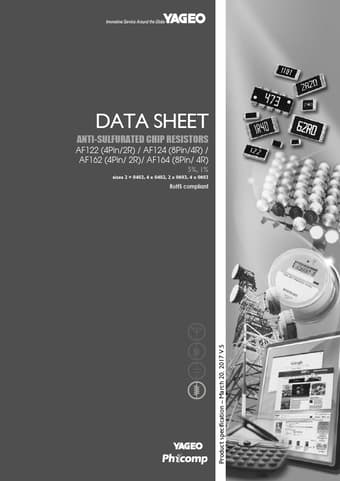

Preview of AF122 PDF

Datasheet Details

Part number:

AF122

Manufacturer:

YAGEO

File Size:

522.86 KB

Description:

Anti-sulfurated chip resistors.
DATA SHEET ANTI-SULFURATED CHIP RESISTORS AF122 (4Pin/2R) / AF124 (8Pin/4R) / AF164 (8Pin/ 4R) 5%, 1% sizes 2 × 0402, 4 x 0402, 4 x 0603 RoHS complian.
