AF1202A

Step-Down Converter

AF1202A Features

* as low current consumption. Since this converter can accommodate an input voltage up to 23V, it is also suitable for the operation via an AC adapter. Features Input voltage: 4.2V to 23V. Output voltage: 0.8V to VIN. Duty ratio: 0% to 100% PWM control Oscillation frequency: 300KHz typ. Soft-start, C

AF1202A General Description

AF1202A consists of step-down switching regulator with PWM control. These devices include a reference voltage source, oscillation circuit, error amplifier, internal PMOS and etc. AF1202A provides low-ripple power, high efficiency, and excellent transient characteristics. The PWM control circuit is a.

AF1202A Datasheet (145.09 KB)

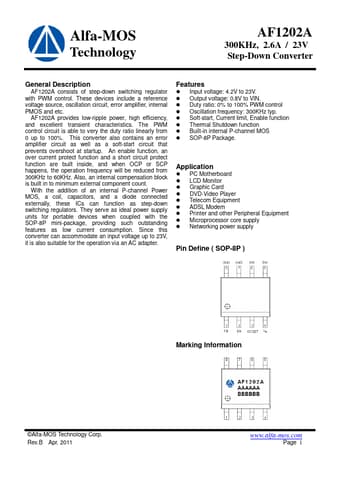

Preview of AF1202A PDF

Datasheet Details

Part number:

AF1202A

Manufacturer:

Alfa-MOS

File Size:

145.09 KB

Description:

Step-down converter.
