AF1210B, AF1210B-Alfa Datasheet - Alfa-MOS

AF1210B Step-Down Converter

AF1210B consists of step-down switching regulator with PWM control. These devices include a reference voltage source, oscillation circuit, error amplifier, internal PMOS and etc. AF1210B provides low-ripple power, high efficiency, and excellent transient characteristics. The PWM control circuit is a.

AF1210B Features

* as low current consumption. Since this converter can accommodate an input voltage up to 40V, it is also suitable for the operation via an AC adapter. Features Input voltage: 4.2V to 40V. Output voltage: 0.8V to VIN. Duty ratio: 0% to 100% PWM control Oscillation frequency: 150KHz typ. Soft-start, C

AF1210B-Alfa-MOS.pdf

This datasheet PDF includes multiple part numbers: AF1210B, AF1210B-Alfa. Please refer to the document for exact specifications by model.

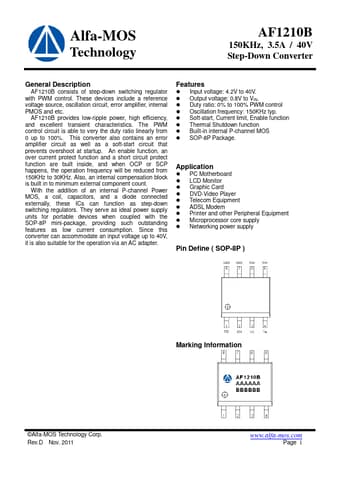

AF1210B Datasheet Preview Page 2 AF1210B Datasheet Preview Page 3

Datasheet Details

Part number:

AF1210B, AF1210B-Alfa

Manufacturer:

Alfa-MOS

File Size:

132.99 KB

Description:

Step-down converter.

Note:

This datasheet PDF includes multiple part numbers: AF1210B, AF1210B-Alfa.
Please refer to the document for exact specifications by model.
