AF1210A, AF1210A-Alfa Step-Down Converter

Alfa-MOS

Description

Alfa-MOS Technology AF1210A 150KHz, 2.4A / 40V Step-Down Converter General .
AF1210A consists of step-down switching regulator with PWM control.

📥 Download Datasheet

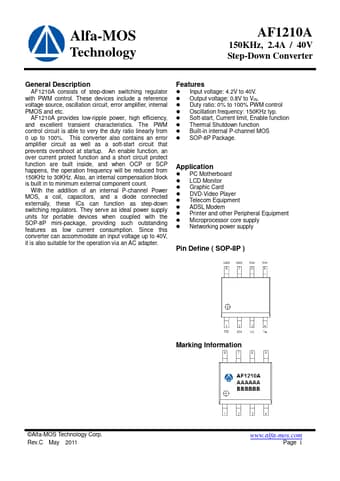

AF1210A Datasheet Preview — This datasheet PDF includes multiple part numbers: AF1210A, AF1210A-Alfa. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: AF1210A, AF1210A-Alfa
Manufacturer: Alfa-MOS
File Size: 132.58 KB
Datasheet: AF1210A-Alfa-MOS.pdf
Description: Step-Down Converter
Note: This datasheet PDF includes multiple part numbers: AF1210A, AF1210A-Alfa.
Please refer to the document for exact specifications by model.

Features

* as low current consumption. Since this converter can accommodate an input voltage up to 40V, it is also suitable for the operation via an AC adapter. Features Input voltage: 4.2V to 40V. Output voltage: 0.8V to VIN. Duty ratio: 0% to 100% PWM control Oscillation frequency: 150KHz typ. Soft-start, C
