AF1210

Step-Down Converter

AF1210 Features

* as low current consumption. Since this converter can accommodate an input voltage up to 40V, it is also suitable for the operation via an AC adapter. Features Input voltage: 4.2V to 40V. Output voltage: 0.8V to VIN. Duty ratio: 0% to 100% PWM control Oscillation frequency: 150KHz typ. Soft-start, C

AF1210 General Description

AF1210 consists of step-down switching regulator with PWM control. These devices include a reference voltage source, oscillation circuit, error amplifier, internal PMOS and etc. AF1210 provides low-ripple power, high efficiency, and excellent transient characteristics. The PWM control circuit is abl.

AF1210 Datasheet (132.49 KB)

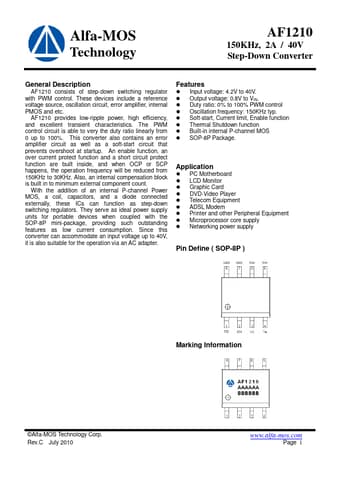

Preview of AF1210 PDF

Datasheet Details

Part number:

AF1210

Manufacturer:

Alfa-MOS

File Size:

132.49 KB

Description:

Step-down converter.
