XP10NA8R4P N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP10NA8R4P Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Simple Drive Requirement ▼ Fast Switching Charact.
AXP41600N4A8sRer4iessearriesfraorme Aindnvoavnacteedd Pdoewsiegrninannodvasteildicodnespigrnocaensds steilcichonnolopgroycteossactheiechvenotlhoegylow.

📥 Download Datasheet

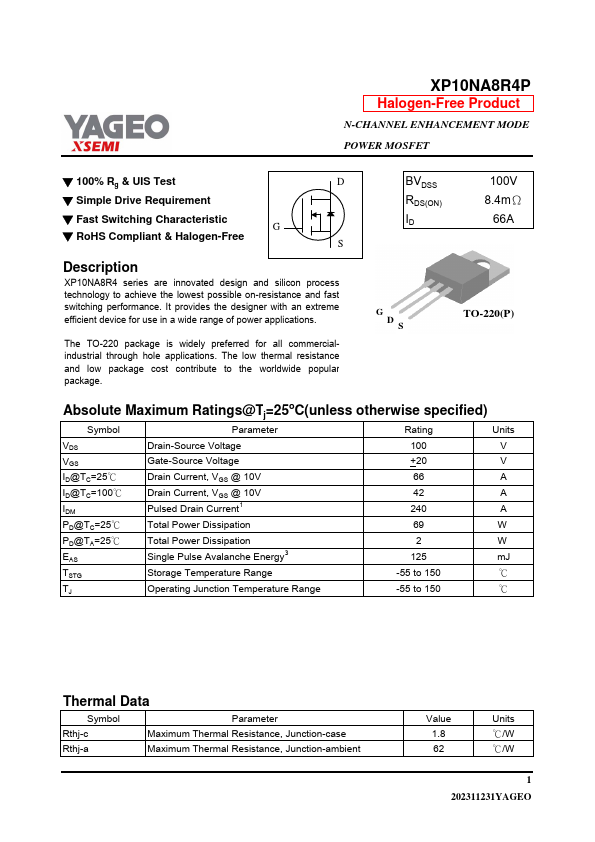

XP10NA8R4P Datasheet Preview — Preview of XP10NA8R4P PDF

Datasheet Specifications

Part number: XP10NA8R4P
Manufacturer: YAGEO
File Size: 192.20 KB
Datasheet: XP10NA8R4P-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-220 package is widely preferred for all commercialindustrial through hole applications. The low thermal resistance and low package cost contribute to the worldwide popular package. BVDSS RDS(ON) ID 100V 8.4mΩ 66A G DS TO-220(P) Absolute Maximum Ratings@Tj=25oC(unless otherwise specified
