XP10NB3R0CXT N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP10NB3R0CXT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Simple Drive Requirement ▼ Low On-resistance ▼.
XP10NB3R0C series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

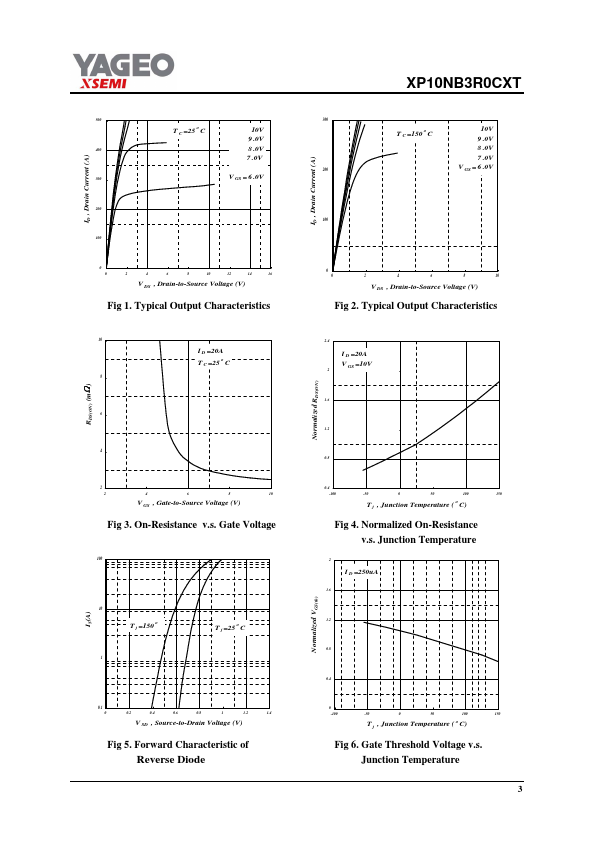

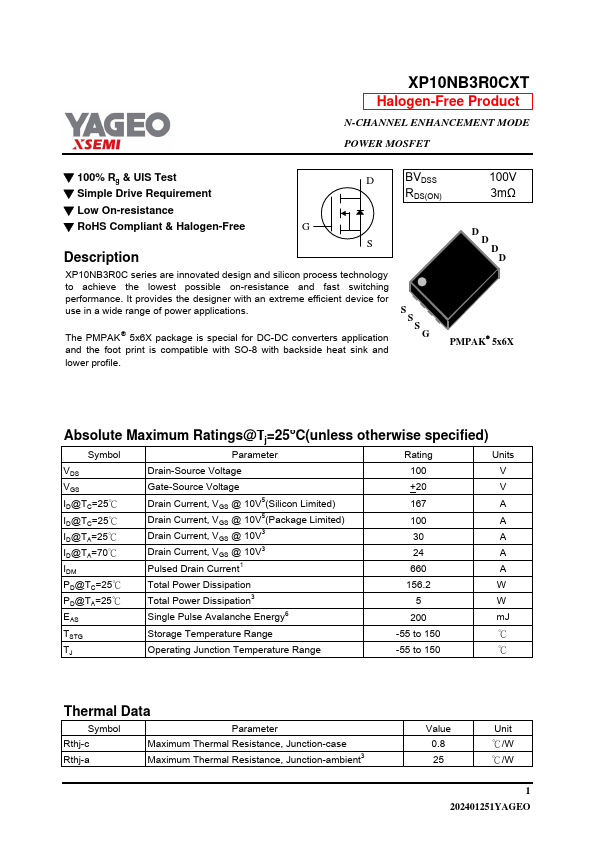

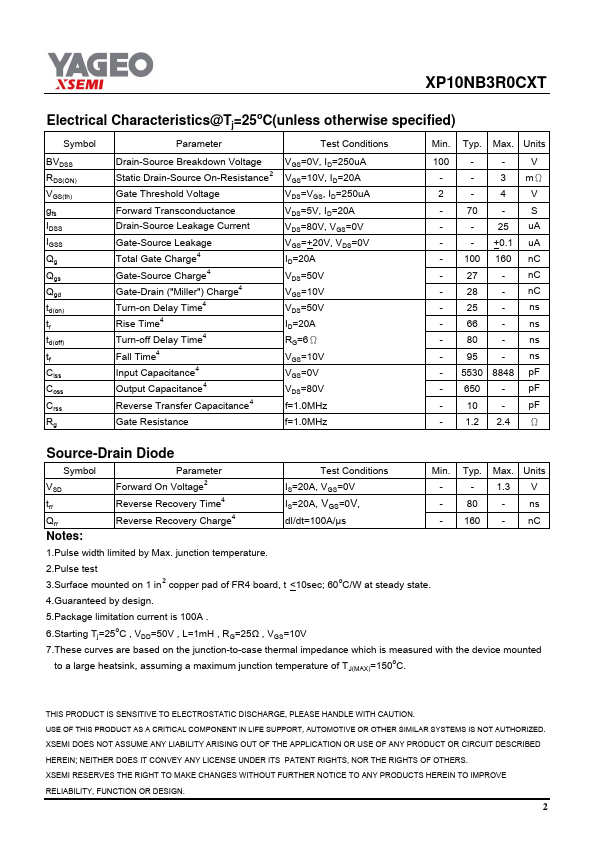

XP10NB3R0CXT Datasheet Preview — Preview of XP10NB3R0CXT PDF

Datasheet Specifications

Part number: XP10NB3R0CXT
Manufacturer: YAGEO
File Size: 301.36 KB
Datasheet: XP10NB3R0CXT-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PMPAK® 5x6X package is special for DC-DC converters application and the foot print is compatible with SO-8 with backside heat sink and lower profile. BVDSS RDS(ON) 100V 3mΩ D D D D S S S G PMPAK® 5x6X Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating
