XP10NB3R4LCMT N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP10NB3R4LCMT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test ▼ Simple Drive Requirement ▼ Low On-resistance ▼ Ro.
XP10NB3R4LC series are innovated design and silicon process technology to achieve the lowest possible onresistance and fast switching performance.

📥 Download Datasheet

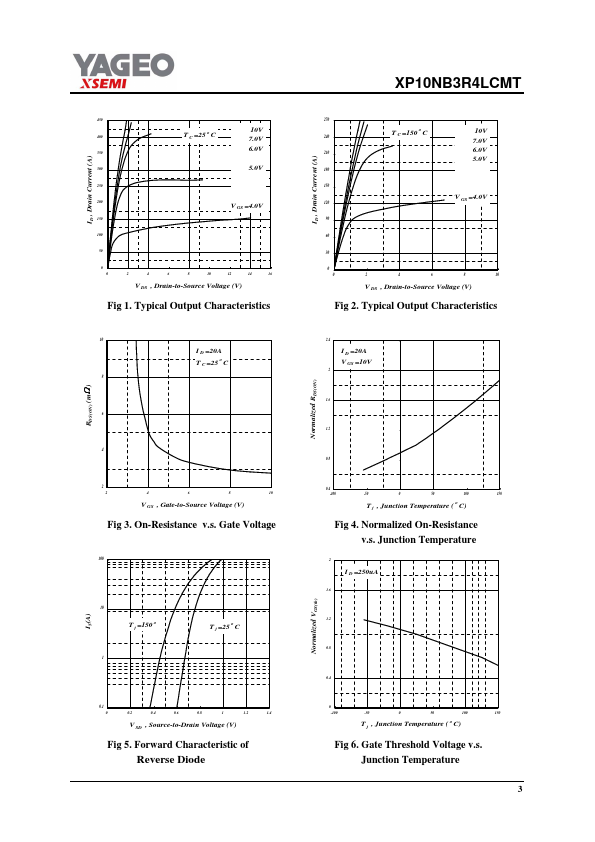

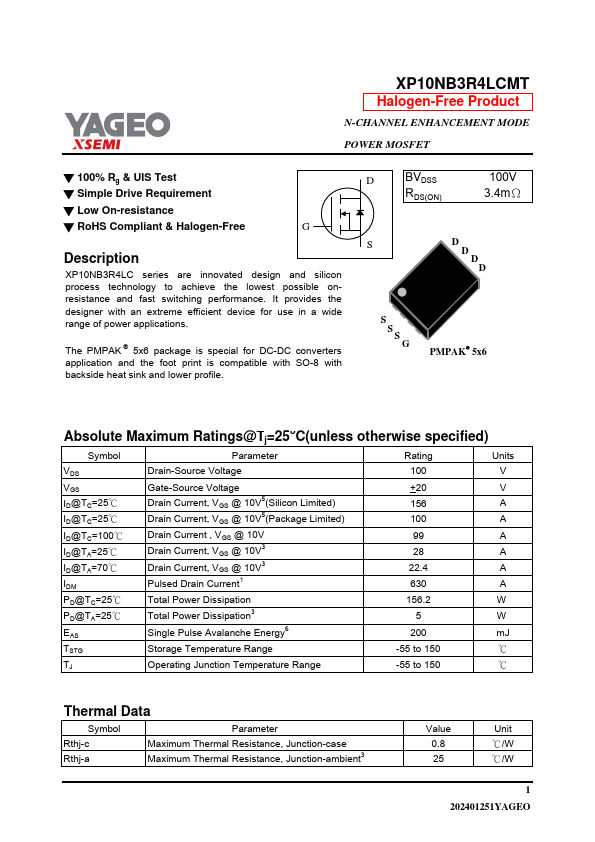

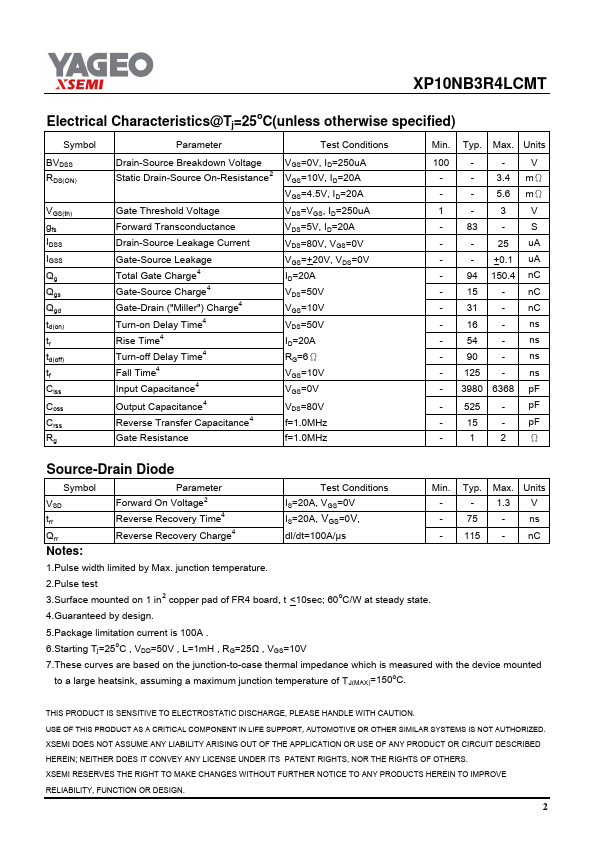

XP10NB3R4LCMT Datasheet Preview — Preview of XP10NB3R4LCMT PDF

Datasheet Specifications

Part number: XP10NB3R4LCMT
Manufacturer: YAGEO
File Size: 362.86 KB
Datasheet: XP10NB3R4LCMT-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PMPAK ® 5x6 package is special for DC-DC converters application and the foot print is compatible with SO-8 with backside heat sink and lower profile. D BVDSS RDS(ON) 100V 3.4mΩ S D D D D S S S G PMPAK® 5x6 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Paramete
