XP2N075EN - N-CHANNEL ENHANCEMENT MODE POWER MOSFET

📥 Download Datasheet

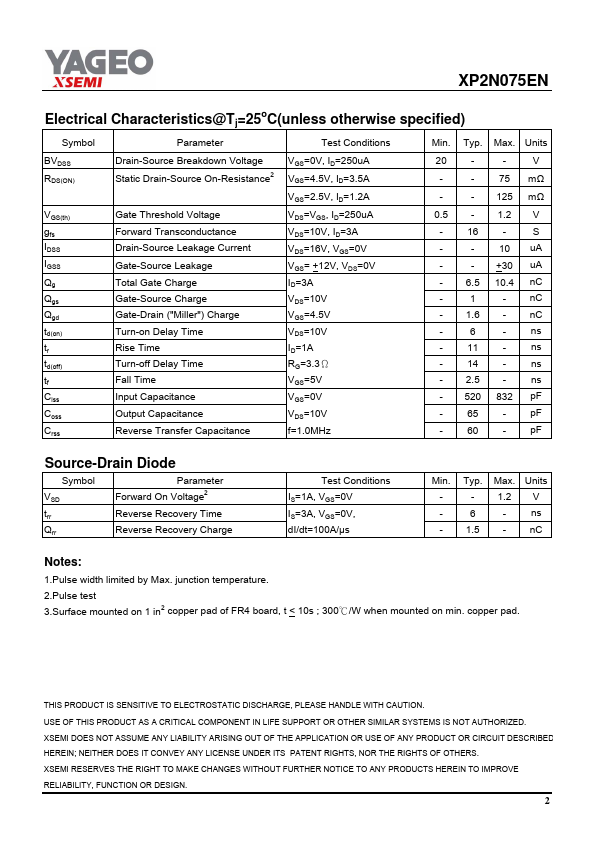

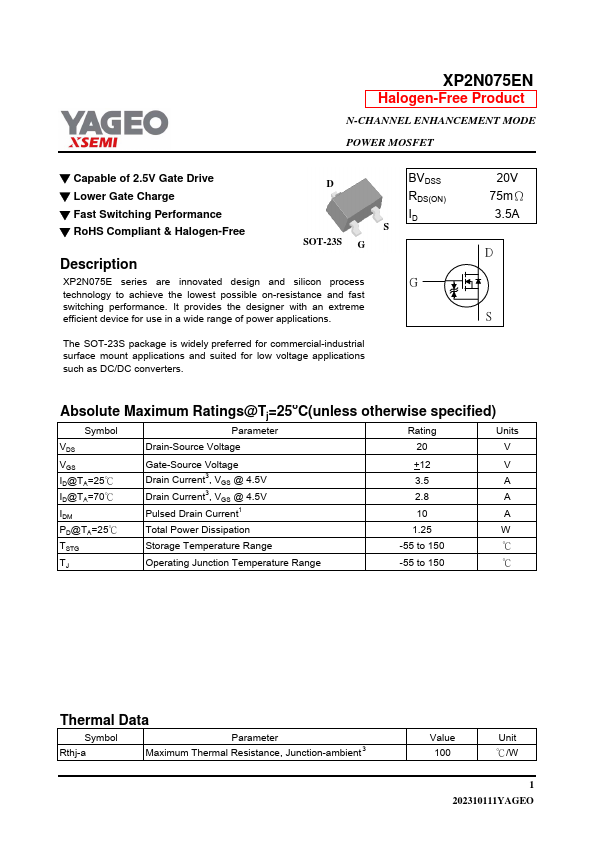

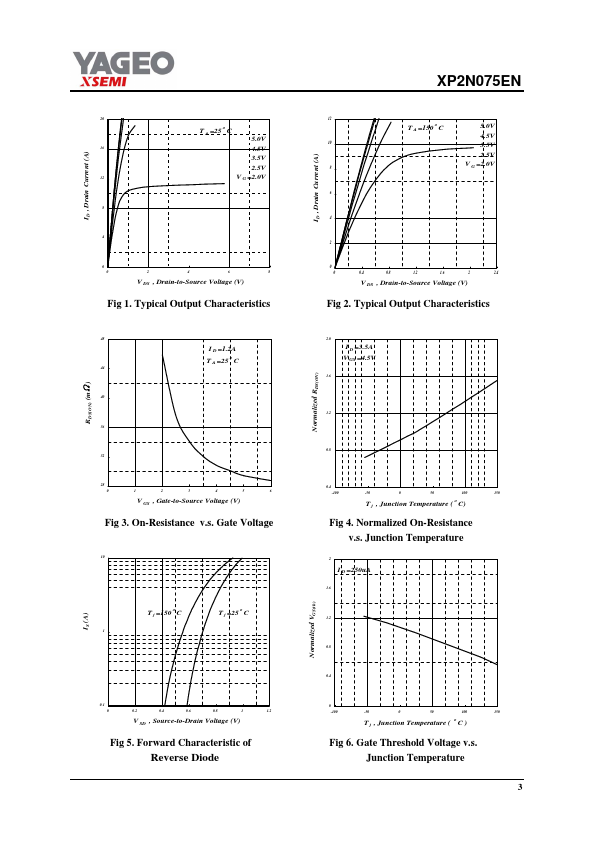

Preview of XP2N075EN PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number XP2N075EN
Manufacturer YAGEO
File Size 192.94 KB
Description N-CHANNEL ENHANCEMENT MODE POWER MOSFET
Datasheet download datasheet XP2N075EN-YAGEO.pdf

XP2N075EN Product details

Description

XP2N075E series are innovated design and silicon process G technology to achieve the lowest possible on-resistance and fast switching performance.It provides the designer with an extreme efficient device for use in a wide range of power applications.The SOT-23S package is widely preferred for commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters.20V 75mΩ 3.5A D S Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Sy
