XP2N7002KU N-CHANNEL ENHANCEMENT MODE POWER MOSFET

📥 Download Datasheet  Datasheet Preview Page 1

Description

XP2N7002KU Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Small Package Outline D BVDSS RDS(ON) ▼ Surf.
XP2N7002 series are innovated design and silicon process G technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

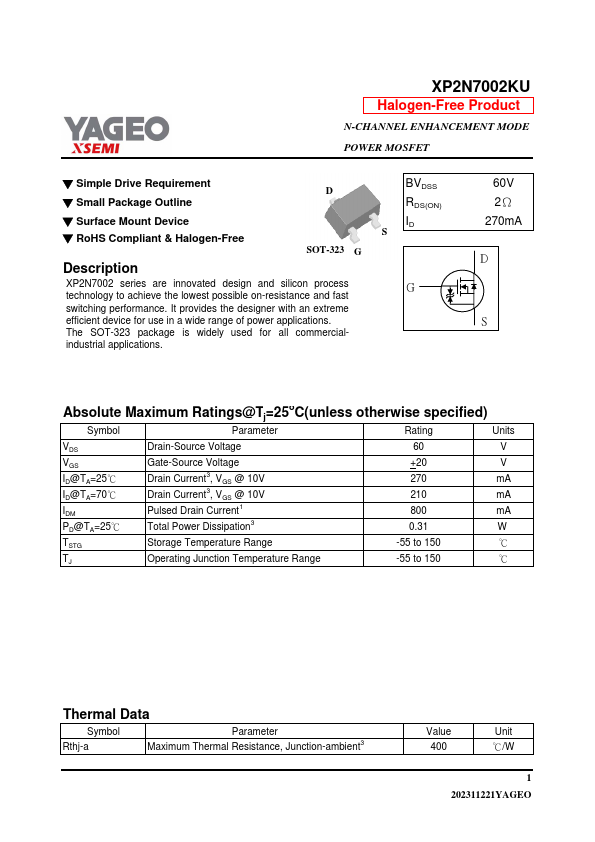

Preview of XP2N7002KU PDF

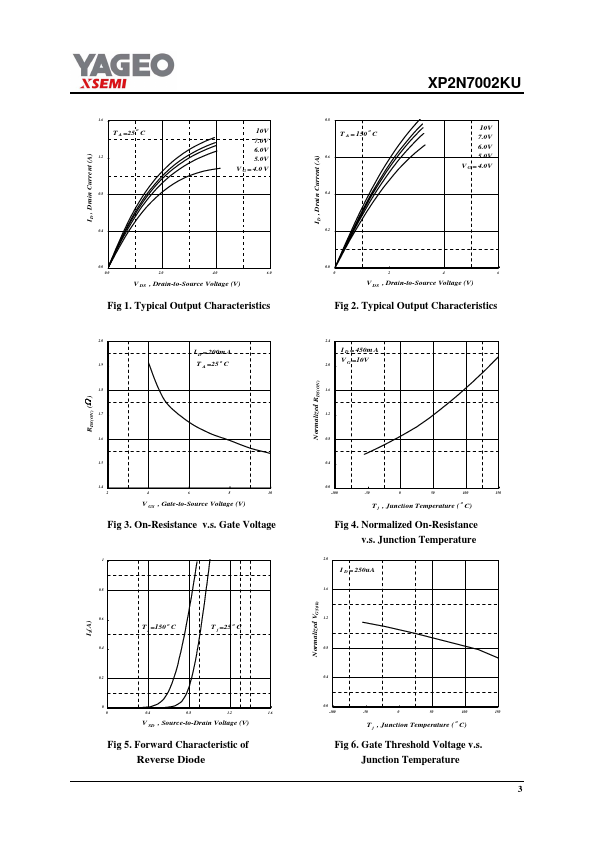

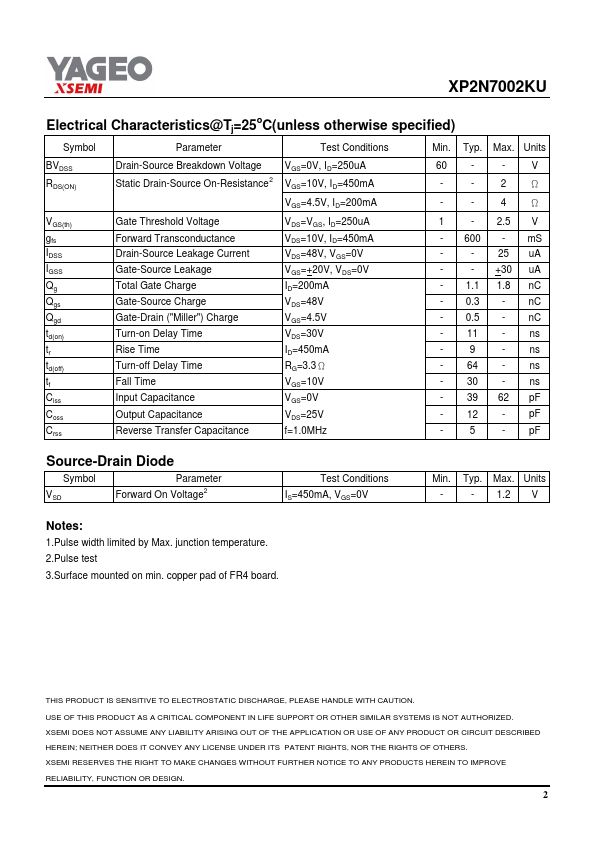

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
XP2N7002KU
Manufacturer
YAGEO
File Size
158.68 KB
Datasheet
XP2N7002KU-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SOT-323 package is widely used for all commercial- industrial applications. 60V 2Ω 270mA D S Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS VGS ID@TA=25℃ ID@TA=70℃ IDM PD@TA=25℃ TSTG TJ Drain-Source Voltage Gate-Source Voltage Drain Curr
