XP3A010MT DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP3A010MT Halogen-Free Product DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Fast Switching Characteristic ▼ RoHS Complia.
XP3A010 series are innovated design and silicon process technology to achieve the lowest possible onresistance and fast switching performance.

📥 Download Datasheet

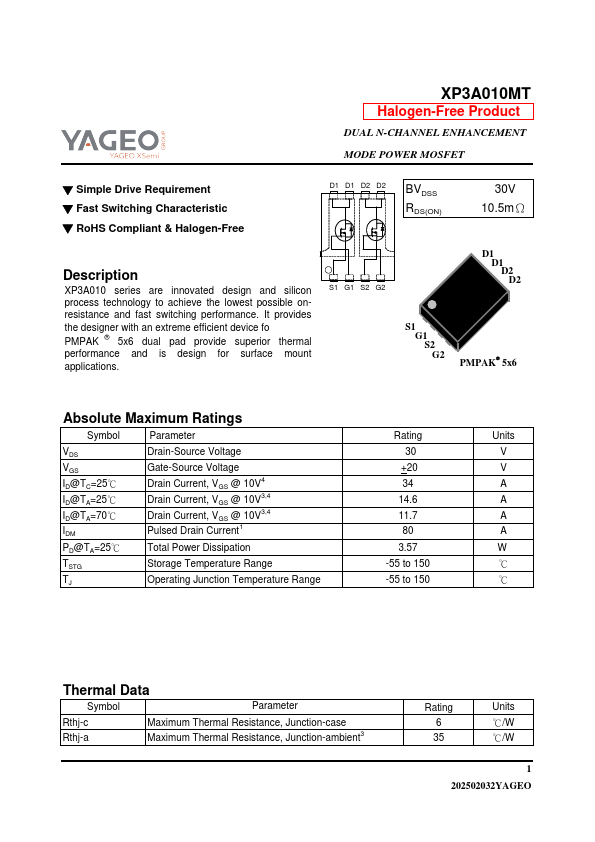

XP3A010MT Datasheet Preview — Preview of XP3A010MT PDF

Datasheet Specifications

Part number: XP3A010MT
Manufacturer: YAGEO
File Size: 667.09 KB
Datasheet: XP3A010MT-YAGEO.pdf
Description: DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* S1 G1 S2 G2 D1 D1 D2 D2 S1 G1 S2 G2 PMPAK® 5x6 Absolute Maximum Ratings . Symbol Parameter VDS VGS ID@TC=25℃ ID@TA=25℃ ID@TA=70℃ IDM PD@TA=25℃ TSTG TJ Drain-Source Voltage Gate-Source Voltage Drain Current, VGS @ 10V4 Drain Current, VGS @ 10V3,4 Drain Current, VGS @ 10V3,4 Pulsed Drain Cu
