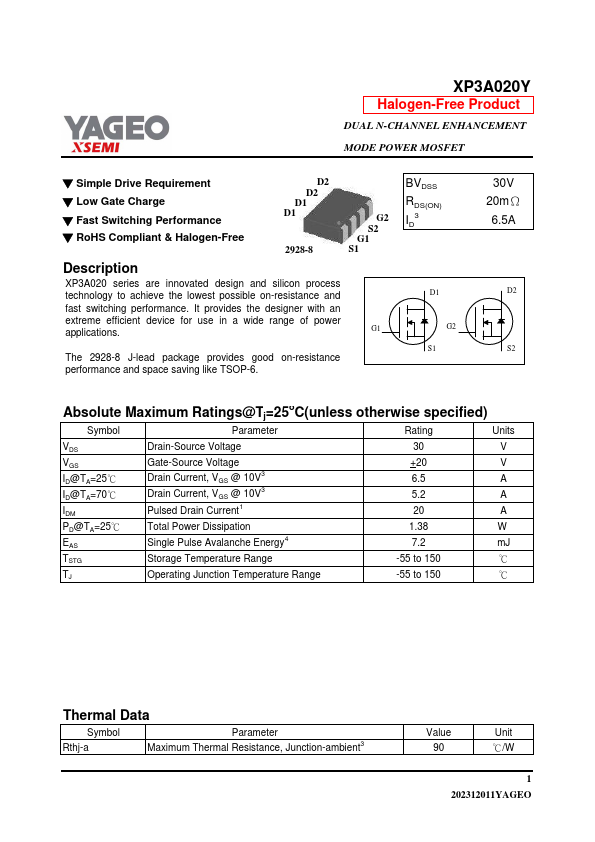

XP3A020Y DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP3A020Y Halogen-Free Product DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Low Gate Charge ▼ Fast Switching Performance .
XP3A020 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

XP3A020Y Datasheet Preview — Preview of XP3A020Y PDF

Datasheet Specifications

Part number: XP3A020Y
Manufacturer: YAGEO
File Size: 199.06 KB
Datasheet: XP3A020Y-YAGEO.pdf
Description: DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* G1 The 2928-8 J-lead package provides good on-resistance performance and space saving like TSOP-6. BVDSS RDS(ON) ID3 D1 G2 S1 30V 20mΩ 6.5A D2 S2 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS VGS ID@TA=25℃ ID@TA=70℃ IDM PD@TA=25℃ EAS TSTG T
