XP3P3R0MT P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP3P3R0MT Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Simple Drive Requirement ▼ Ultra Low On-resistance.
XP3P3R0 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

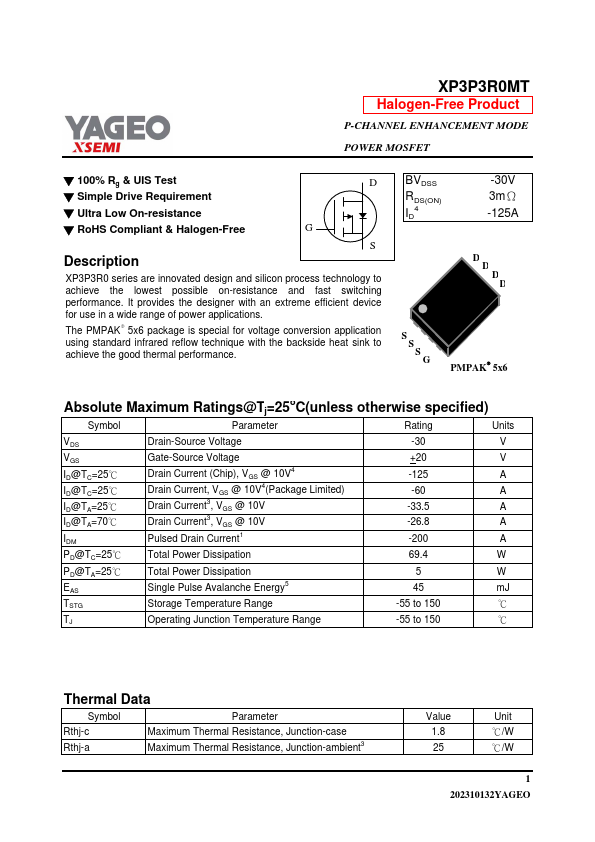

XP3P3R0MT Datasheet Preview — Preview of XP3P3R0MT PDF

Datasheet Specifications

Part number: XP3P3R0MT
Manufacturer: YAGEO
File Size: 324.94 KB
Datasheet: XP3P3R0MT-YAGEO.pdf
Description: P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PMPAK® 5x6 package is special for voltage conversion application using standard infrared reflow technique with the backside heat sink to achieve the good thermal performance. BVDSS RDS(ON) ID4 -30V 3mΩ -125A D D D D S S S G PMPAK® 5x6 Absolute Maximum Ratings@Tj=25oC(unless otherwise spec
