XP4034GM N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

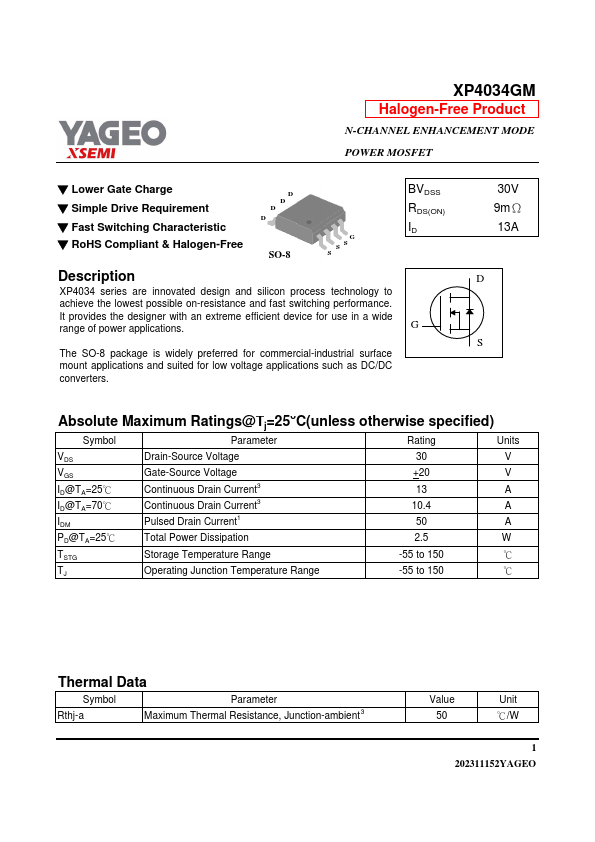

Description

XP4034GM Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Lower Gate Charge ▼ Simple Drive Requirement ▼ Fast Switching Characteristic .
XP4034 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

XP4034GM Datasheet Preview — Preview of XP4034GM PDF

Datasheet Specifications

Part number: XP4034GM
Manufacturer: YAGEO
File Size: 204.76 KB
Datasheet: XP4034GM-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* BVDSS RDS(ON) ID G The SO-8 package is widely preferred for commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters. 30V 9mΩ 13A D S Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS VGS
