XP40T03GP N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP40T03GP Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement D BVDSS ▼ Low Gate Charge RDS(ON) ▼ Fast Switc.
XP40T03 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

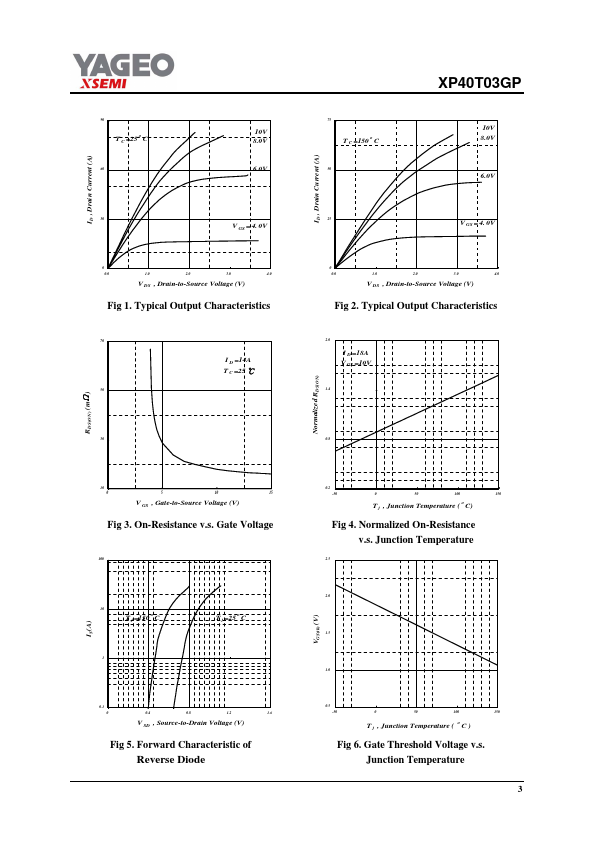

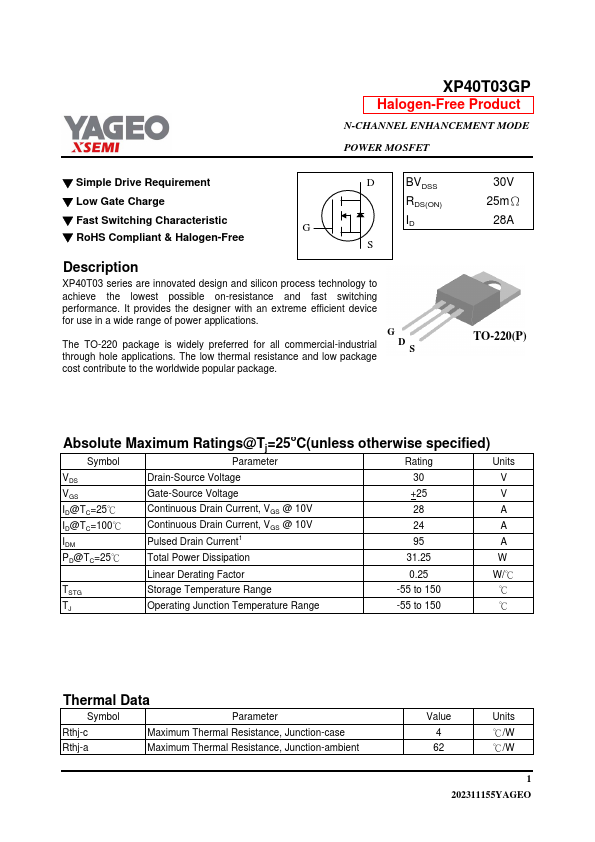

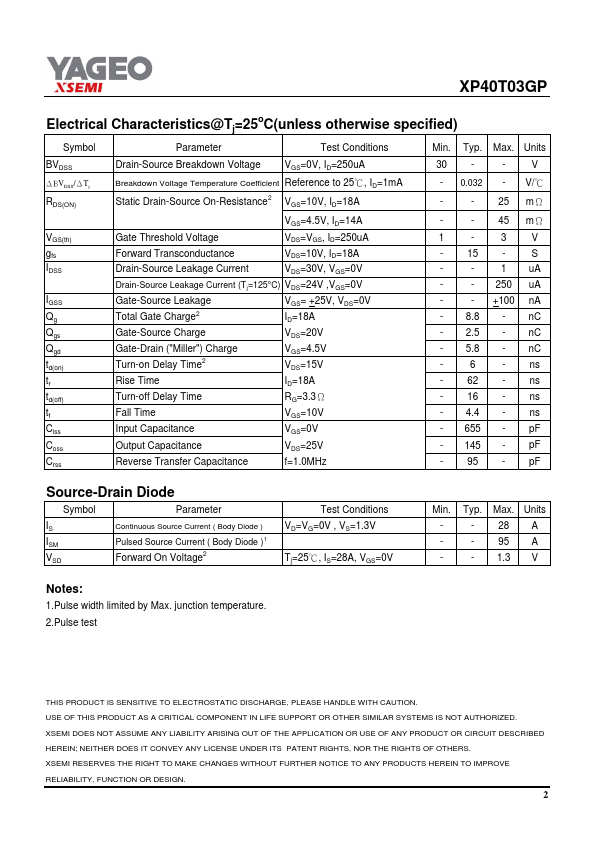

XP40T03GP Datasheet Preview — Preview of XP40T03GP PDF

Datasheet Specifications

Part number: XP40T03GP
Manufacturer: YAGEO
File Size: 147.29 KB
Datasheet: XP40T03GP-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-220 package is widely preferred for all commercial-industrial through hole applications. The low thermal resistance and low package cost contribute to the worldwide popular package. G D S 30V 25mΩ 28A TO-220(P) Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Paramete
