XP4413GM P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

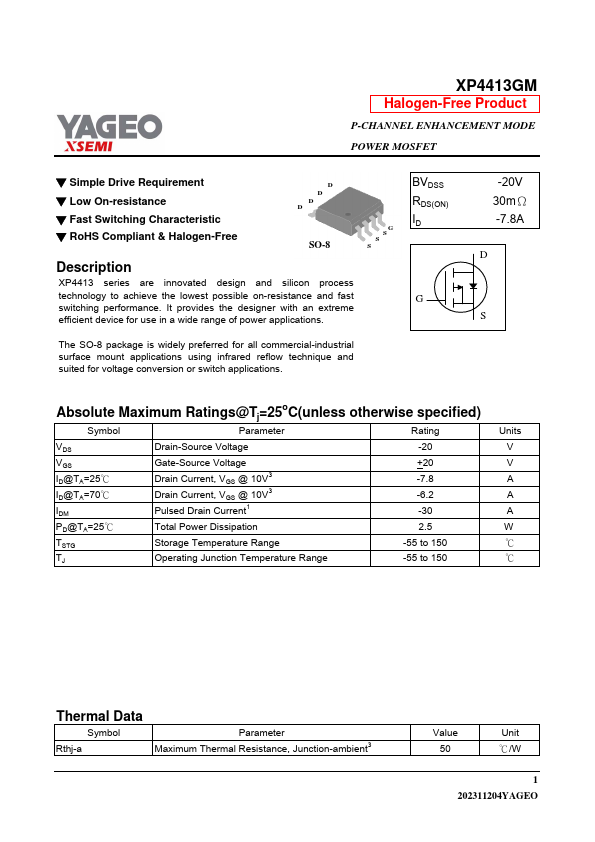

Description

XP4413GM Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Low On-resistance ▼ Fast Switching Characteristic .
XP4413 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

XP4413GM Datasheet Preview — Preview of XP4413GM PDF

Datasheet Specifications

Part number: XP4413GM
Manufacturer: YAGEO
File Size: 241.08 KB
Datasheet: XP4413GM-YAGEO.pdf
Description: P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SO-8 package is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications. BVDSS RDS(ON) ID G -20V 30mΩ -7.8A D S Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Pa
