XP4459M P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP4459M Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Low On-resistance ▼ Fast Switching Characteristic ▼.
XP4459 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

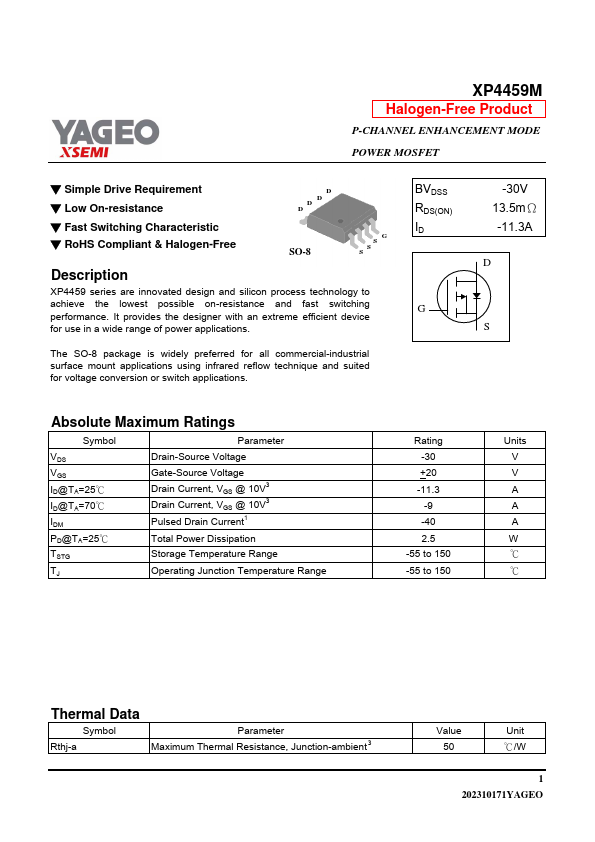

XP4459M Datasheet Preview — Preview of XP4459M PDF

Datasheet Specifications

Part number: XP4459M
Manufacturer: YAGEO
File Size: 244.60 KB
Datasheet: XP4459M-YAGEO.pdf
Description: P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SO-8 package is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications. BVDSS RDS(ON) ID G -30V 13.5mΩ -11.3A D S Absolute Maximum Ratings Symbol Parameter VDS VGS ID@TA=25℃ ID@TA=
