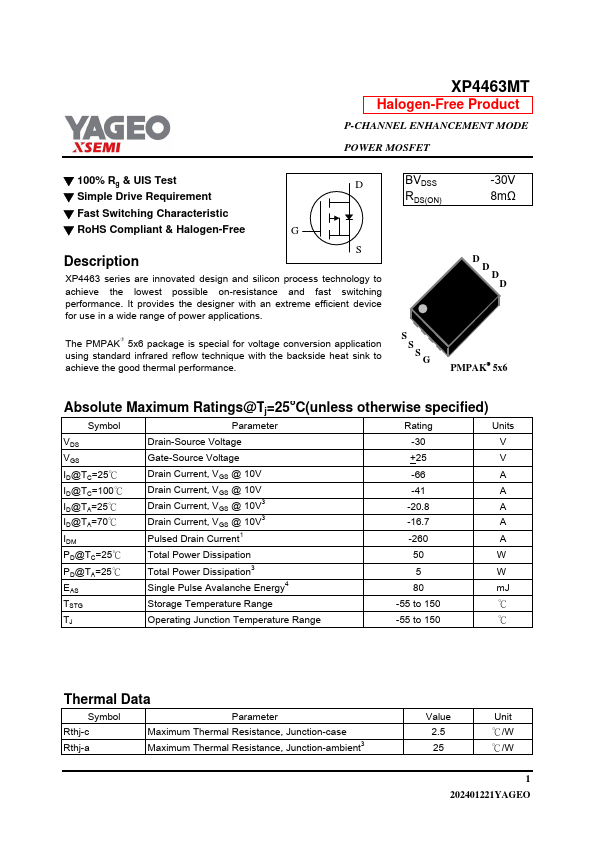

XP4463MT P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP4463MT Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Simple Drive Requirement ▼ Fast Switching Character.
XP4463 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

XP4463MT Datasheet Preview — Preview of XP4463MT PDF

Datasheet Specifications

Part number: XP4463MT
Manufacturer: YAGEO
File Size: 360.62 KB
Datasheet: XP4463MT-YAGEO.pdf
Description: P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PMPAK® 5x6 package is special for voltage conversion application using standard infrared reflow technique with the backside heat sink to achieve the good thermal performance. BVDSS RDS(ON) -30V 8mΩ D D D D S S S G PMPAK® 5x6 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) S
