XP4461YT P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP4461YT Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Simple Drive Requirement ▼ Small Size & Lower Profi.
XP4461 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

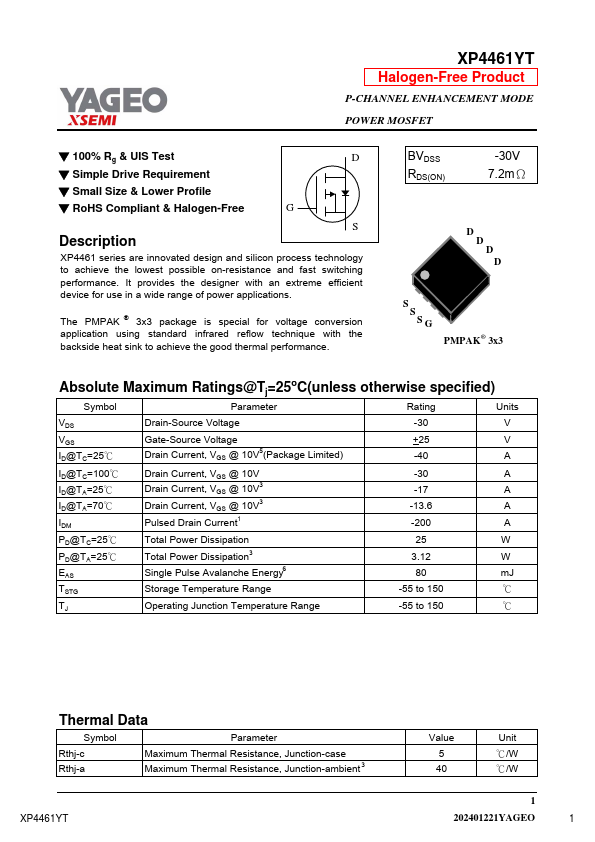

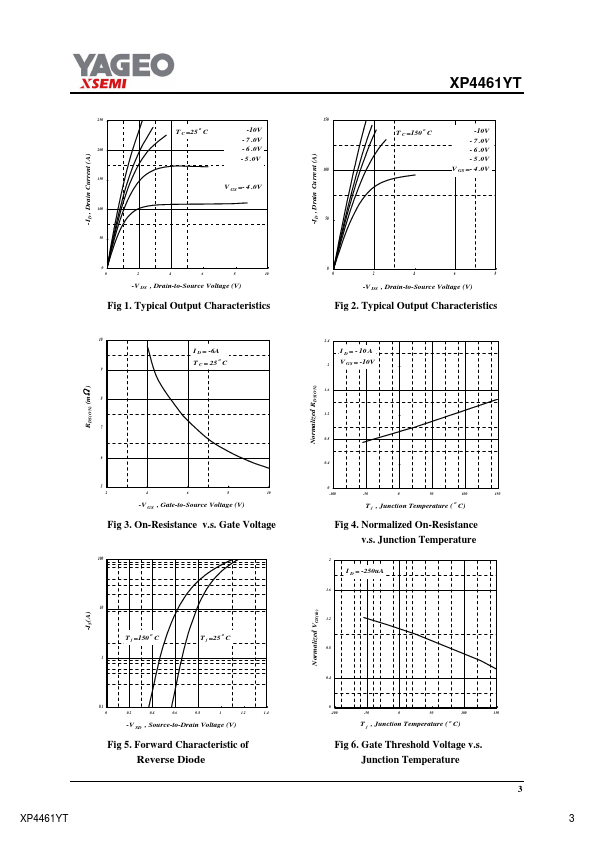

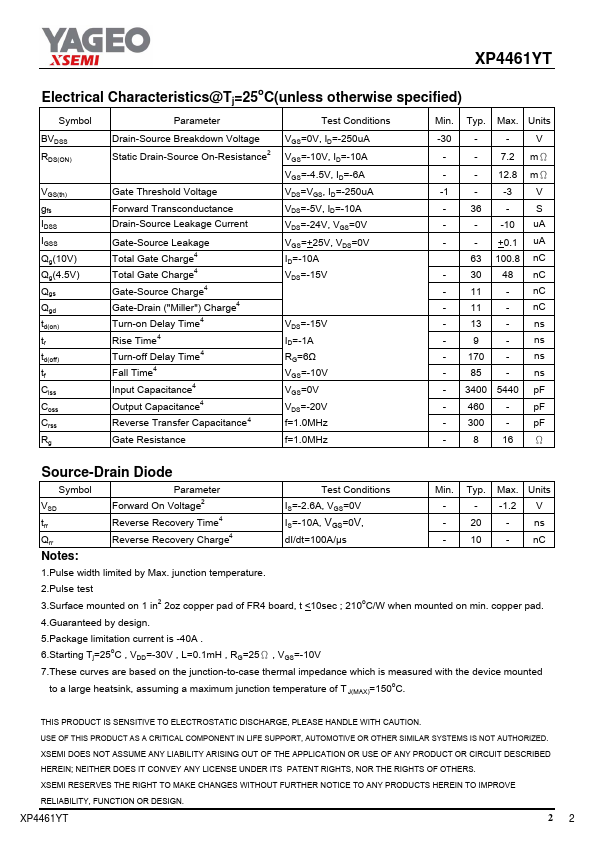

XP4461YT Datasheet Preview — Preview of XP4461YT PDF

Datasheet Specifications

Part number: XP4461YT
Manufacturer: YAGEO
File Size: 289.54 KB
Datasheet: XP4461YT-YAGEO.pdf
Description: P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PMPAK ® 3x3 package is special for voltage conversion application using standard infrared reflow technique with the backside heat sink to achieve the good thermal performance. BVDSS RDS(ON) -30V 7.2mΩ D D D D S S SG PMPAK® 3x3 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified)
