XP4951GM DUAL P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP4951GM Halogen-Free Product DUAL P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Low Gate Charge ▼ Fast Switching Performance .
XP4951 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and D1 D2 fast switching performanc.

📥 Download Datasheet

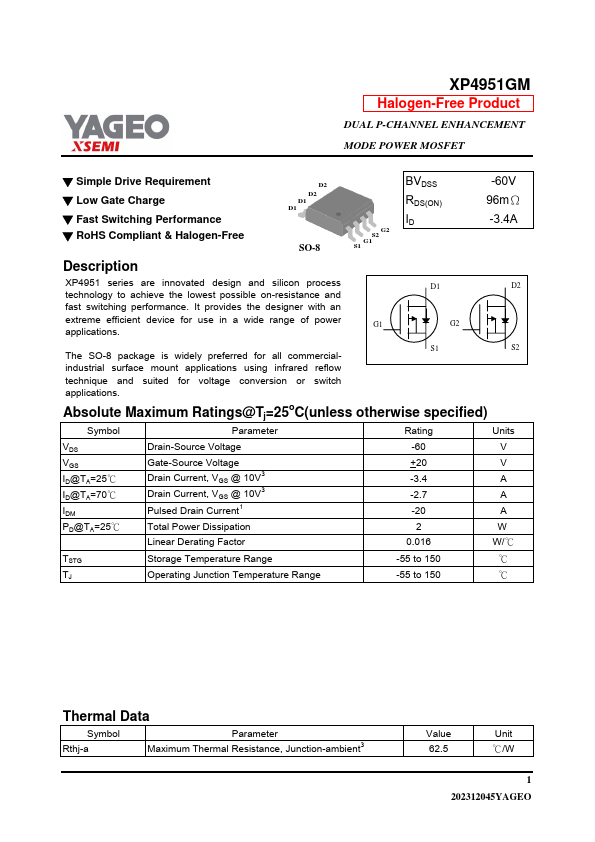

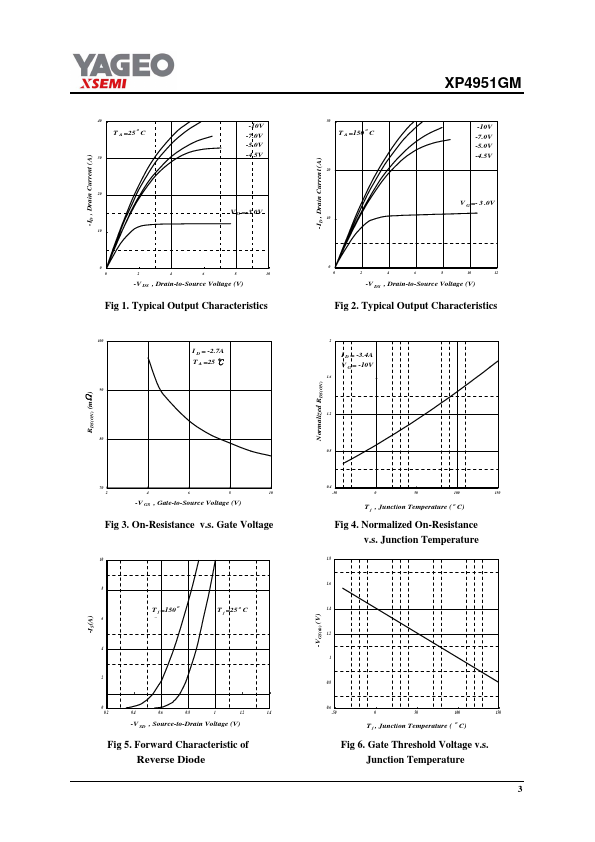

XP4951GM Datasheet Preview — Preview of XP4951GM PDF

Datasheet Specifications

Part number: XP4951GM
Manufacturer: YAGEO
File Size: 242.58 KB
Datasheet: XP4951GM-YAGEO.pdf
Description: DUAL P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SO-8 package is widely preferred for all commercialindustrial surface mount applications using infrared reflow S1 S2 technique and suited for voltage conversion or switch applications. Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS VGS I
