XP4963GEM DUAL P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP4963GEM Halogen-Free Product DUAL P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Lower Gate Charge ▼ Fast Switching Performan.
XP4963 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and G1 fast switching performance.

📥 Download Datasheet

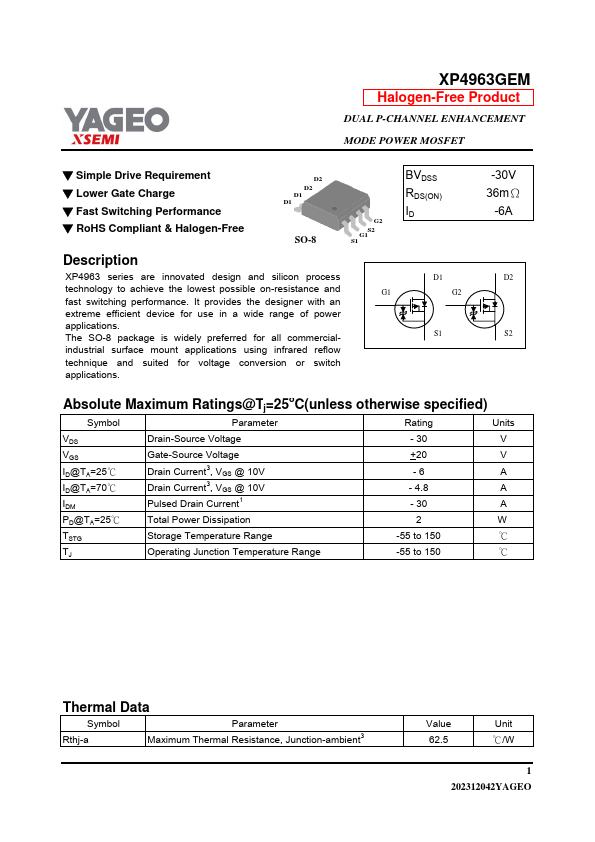

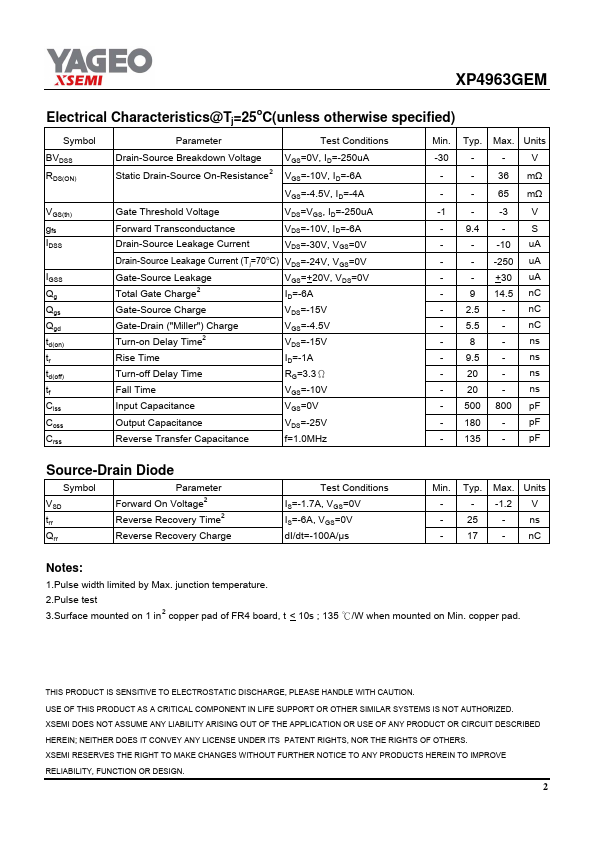

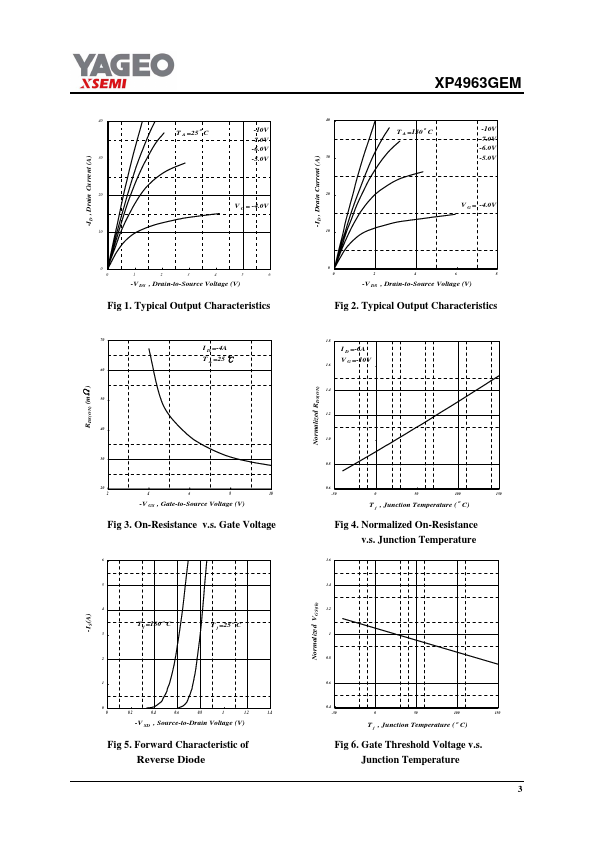

XP4963GEM Datasheet Preview — Preview of XP4963GEM PDF

Datasheet Specifications

Part number: XP4963GEM
Manufacturer: YAGEO
File Size: 241.90 KB
Datasheet: XP4963GEM-YAGEO.pdf
Description: DUAL P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SO-8 package is widely preferred for all commercial- industrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications. BVDSS RDS(ON) ID D1 G2 S1 -30V 36mΩ -6A D2 S2 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified)
